2.1. Creating an EMIF Project
For the Intel® Quartus® Prime software version 17.1 and later, you must create an Intel® Quartus® Prime project before generating the EMIF IP and design example.
- Launch the Intel® Quartus® Prime software and select File > New Project Wizard. Click Next.

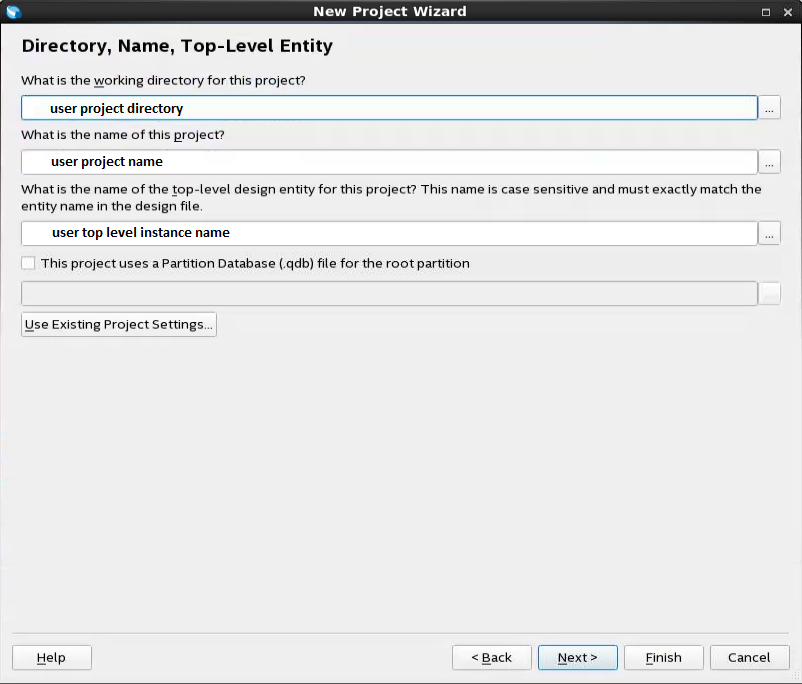

- Specify a directory (<user project directory>), a name for the Intel® Quartus® Prime project (<user project name>), and a top-level design entity name (<user top-level instance name>) that you want to create. Click Next.

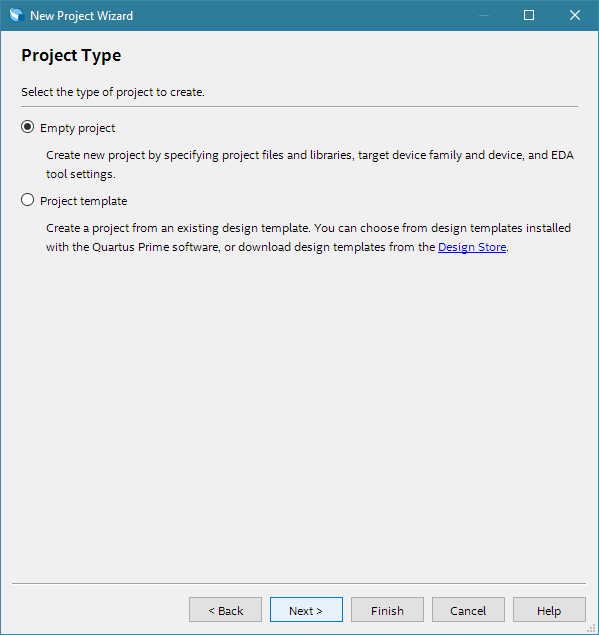

- Verify that Empty Project is selected. Click Next two times.

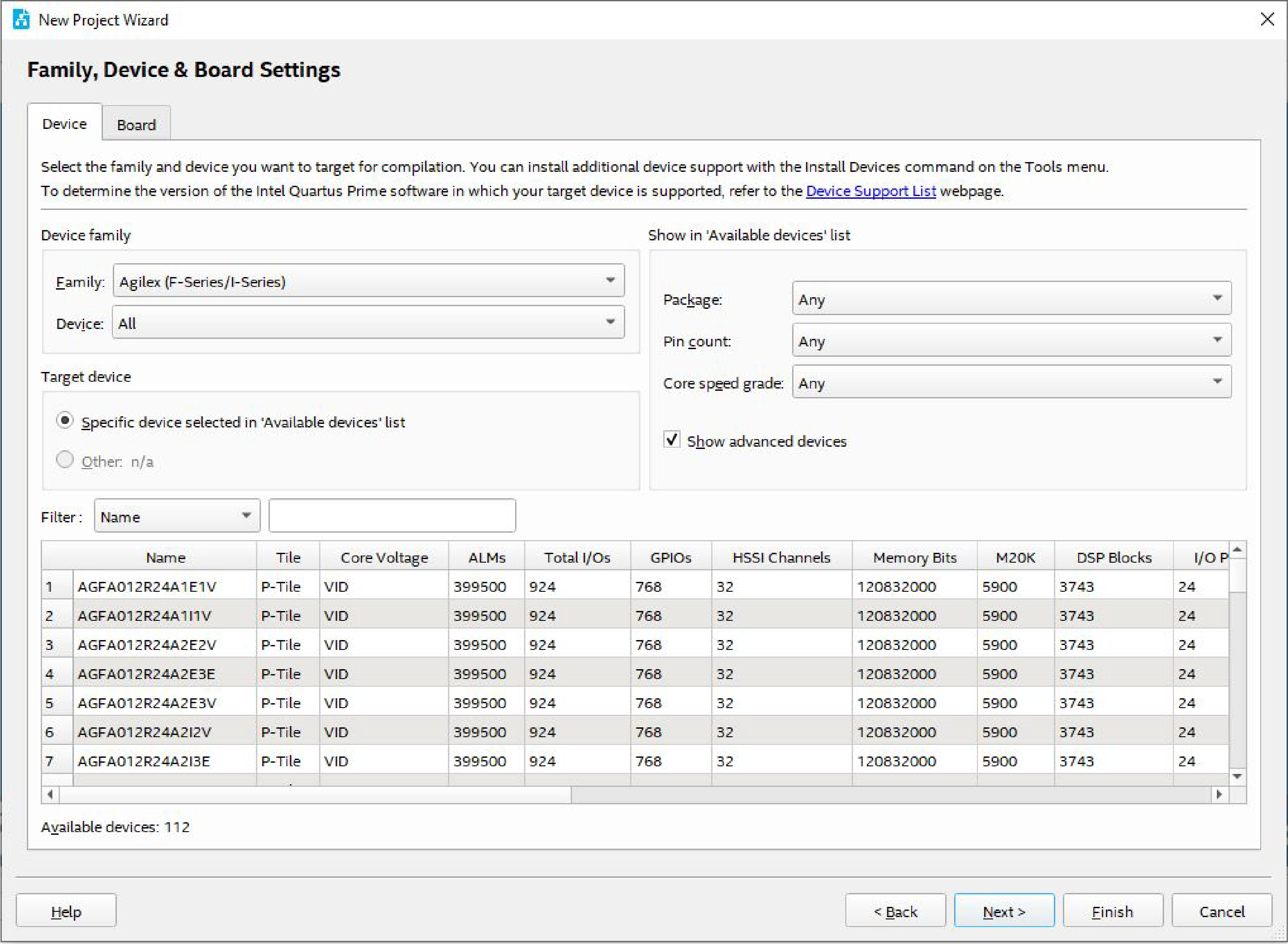

- Under Family, select Intel® Agilex™ .
- Under Name filter, type the device part number.
- Under Available devices, select the appropriate device.
- Click Finish.
