5.2.3. PCI Express and PCI Capabilities Parameters

For each core (PCIe0/PCIe1/PCIe2/PCIe3), the PCI Express / PCI Capabilities tab contains separate tabs for the device, PRS (Endpoint mode), MSI (Endpoint mode), ACS capabilities (Endpoint mode and Root Port mode), slot (Root Port mode), MSI-X, and legacy interrupt pin register parameters.

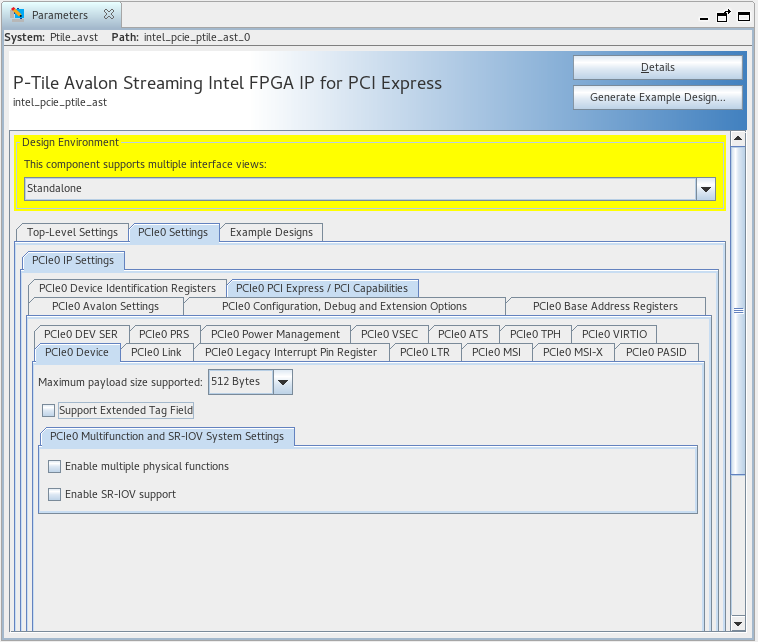

Figure 56. PCI Express / PCI Capabilities Parameters

Section Content
Device Capabilities
VirtIO Parameters
Link Capabilities
Legacy Interrupt Pin Register
MSI Capabilities
MSI-X Capabilities
Slot Capabilities
Latency Tolerance Reporting (LTR)
Process Address Space ID (PASID)
Device Serial Number Capability
Page Request Service (PRS)
Access Control Service (ACS) Capabilities
Power Management
Vendor Specific Extended Capability (VSEC) Registers
TLP Processing Hints (TPH)
Address Translation Services (ATS) Capabilities

Level Two Title
