cdfnorminv
Computes the element-wise inverse cumulative normal distribution function of vector elements.
Description
The cdfnorminv(a) function computes the inverse cumulative normal distribution function values for elements of the input vector a and writes them to the output vector y.
The inverse cumulative normal distribution function is defined as given by:
![](/content/dam/docs/us/en/developer-reference-dpcpp/2023-2/E92A58A8-5722-43AD-9F9D-70C5EE33B239-low.png)
where cdfnorm(x) denotes the cumulative normal distribution function.
Useful relations:
![](/content/dam/docs/us/en/developer-reference-dpcpp/2023-2/E471698E-8438-461B-AD9E-E9B3077AE0EC-low.png)
where erfinv(x) denotes the inverse error function and erfcinv(x) denotes the inverse complementary error functions.

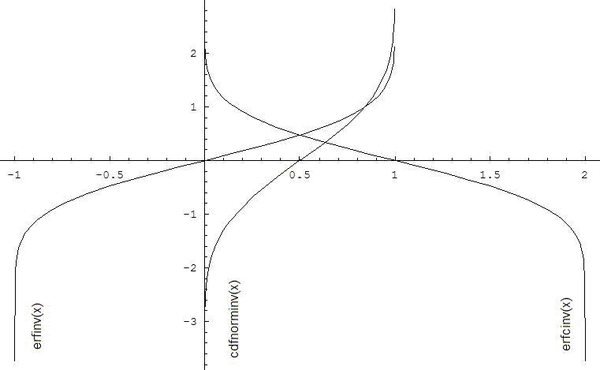

The following figure illustrates the relationships among erfinv family functions (erfinv, erfcinv, cdfnorminv).
![](/content/dam/docs/us/en/developer-reference-dpcpp/2023-2/8E713678-3BBB-4E7D-979A-AF5CC9E76A50-low.png)
Useful relations for these functions:
![](/content/dam/docs/us/en/developer-reference-dpcpp/2023-2/1202B9BD-7CD5-4730-B6F1-5FB7E91BF0DC-low.png)
![](/content/dam/docs/us/en/developer-reference-dpcpp/2023-2/E471698E-8438-461B-AD9E-E9B3077AE0EC-low.png)
Argument |
Result |
Error Code |
---|---|---|
+0.5 |
+0 |
|
+1 |
+ |
status::sing |
-0 |
- |
status::sing |
+0 |
- |
status::sing |
a < -0 |
QNAN |
status::errdom |
a > +1 |
QNAN |
status::errdom |
+ |
QNAN |
status::errdom |
- |
QNAN |
status::errdom |
QNAN |
QNAN |
|
SNAN |
QNAN |
API
Syntax
Buffer API
namespace oneapi::mkl::vm { sycl::event cdfnorminv(sycl::queue & exec_queue, std::int64_t n, sycl::buffer<T> & a, sycl::buffer<T> & y, oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined, oneapi::mkl::vm::error_handler<T> errhandler = {}); }
namespace oneapi::mkl::vm { sycl::event cdfnorminv(sycl::queue & exec_queue, sycl::buffer<T> & a, oneapi::mkl::slice sa, sycl::buffer<T> & y, oneapi::mkl::slice sy, oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined, oneapi::mkl::vm::error_handler<T> errhandler = {}); }
USM API
namespace oneapi::mkl::vm { sycl::event cdfnorminv(sycl::queue & exec_queue, std::int64_t n, T const * a, T * y, std::vector<sycl::event> const & depends = {}, oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined, oneapi::mkl::vm::error_handler<T> errhandler = {}); }
namespace oneapi::mkl::vm { sycl::event cdfnorminv(sycl::queue & exec_queue, T const * a, oneapi::mkl::slice sa, T * y, oneapi::mkl::slice sy, std::vector<sycl::event> const & depends = {}, oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined, oneapi::mkl::vm::error_handler<T> errhandler = {}); }
cdfnorminv supports the following precisions and devices:
T |
Devices supported |
---|---|
float |
CPU and GPU |
double |
CPU and GPU |
Input Parameters
Buffer API
- exec_queue
-
The queue where the routine should be executed.
- n
-
Specifies the number of elements to be calculated.
- a
-
The buffer containing the input vector.
- sa
-
Slice selector for a. See Data Types for a description of the oneMKL slice type.
- sy
-
Slice selector for y. See Data Types for a description of the oneMKL slice type.
- mode
-
Overrides the global VM mode setting for this function call. See set_mode function for possible values and their description. This is an optional parameter. The default value is mode::not_defined.
- errhandler
-
Sets local error handling mode for this function call. See the create_error_handler function for arguments and their descriptions. This is an optional parameter. The local error handler is disabled by default.
USM API
- exec_queue
-
The queue where the routine should be executed.
- n
-
Specifies the number of elements to be calculated.
- a
-
Pointer to the input vector.
- sa
-
Slice selector for a. See Data Types for a description of the oneMKL slice type.
- sy
-
Slice selector for y. See Data Types for a description of the oneMKL slice type.
- depends
-
Vector of dependent events (to wait for input data to be ready). This is an optional parameter. The default is an empty vector.
- mode
-
Overrides the global VM mode setting for this function call. See the set_mode function for possible values and their description. This is an optional parameter. The default value is mode::not_defined.
- errhandler
-
Sets local error handling mode for this function call. See the create_error_handler function for arguments and their descriptions. This is an optional parameter. The local error handler is disabled by default.
Output Parameters
Buffer API
- y
-
The buffer containing the output vector.
- return value (event)
-
Computation end event.
USM API
- y
-
Pointer to the output vector.
- return value (event)
-
Computation end event.
Examples
An example of how to use cdfnorminv can be found in the oneMKL installation directory, under:
examples/dpcpp/vml/source/vcdfnorminv.cpp
