2.1.1.1. Memory Device Description IP Parameter Editor Guidelines
This topic provides high-level guidance for parameterizing the tabs in the Intel Agilex® 7 EMIF Memory Device Description IP parameter editor.
Parameter Editor Tab | Guidelines |
---|---|
High Level Parameters | Ensure that you enter the following parameters correctly:
|
Memory Interface Parameters | Select the required parameters for the following:
|
Memory Timing Parameters | Allows you to modify the frequency and timing settings for the device. |
For detailed information on individual parameters, refer to the appropriate protocol-specific chapter in the External Memory Interfaces Intel Agilex® 7 M-Series FPGA IP User Guide.

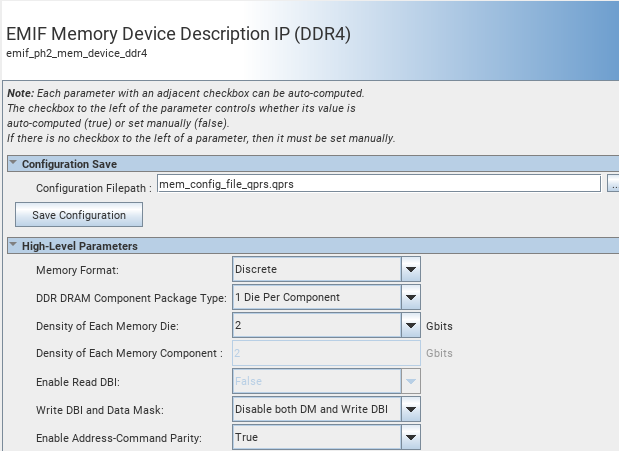

Figure 6. EMIF Memory Device Description Parameter Editor
