2.1.1.3.1. Generating a Custom Memory Preset File for DDR4

To generate a custom preset file for DDR4, follow these steps:

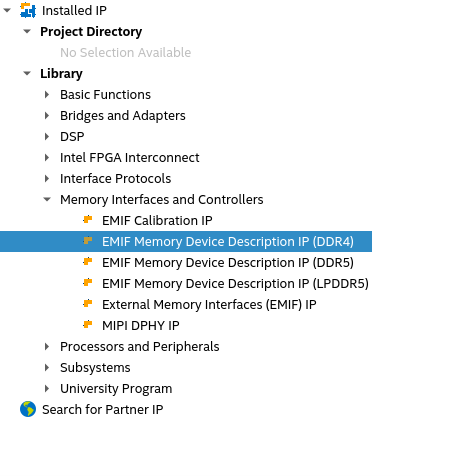

  1. In the IP Catalog window, select Memory Device Description IP (DDR4).

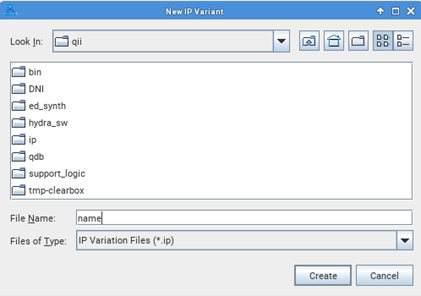

  2. Type the name for the IP instance and click Create.
  3. Refer to the images below for the steps in creating and saving the custom presets file:

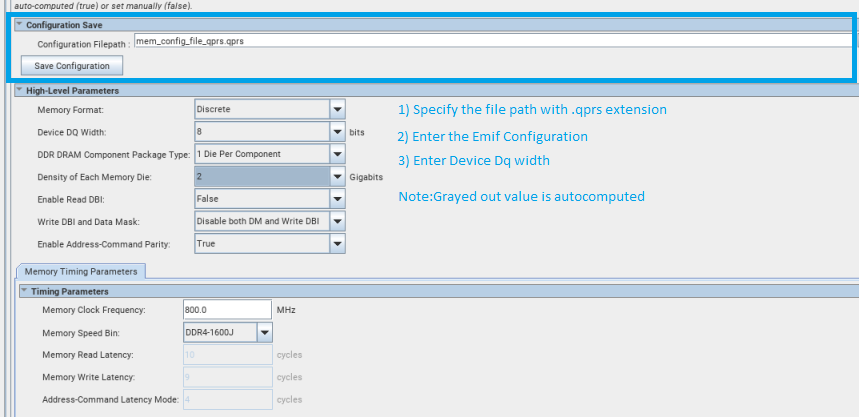

    Figure 8. Parameterizing EMIF Memory Device Description IP (DDR4) – Part 1

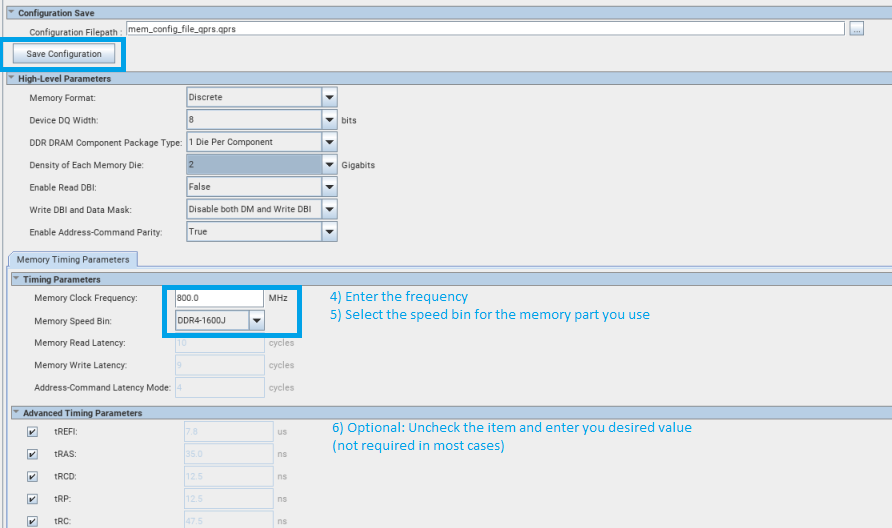

    Figure 9. Parameterizing EMIF Memory Device Description IP (DDR4) – Part 2
