11.5.2. Configuring Your Design to Use the EMIF Debug Toolkit

To configure your design for use with the toolkit, you must generate a design example with the debug toolkit.

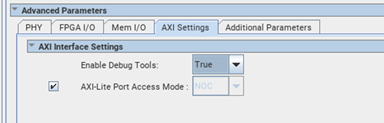

  1. Navigate to the Advanced Parameters section of the General IP Parameters tab.
  2. Select the AXI Settings tab.
  3. Set Enable Debug Tools to True.
  4. After you have fully parameterized the interface, click Generate Example Design. The system generates a design example with the debug toolkit enabled and all necessary components connected as required for a single interface.
