6.3. Streaming-to-Memory (S2M) Variant Design

The streaming-to-memory (S2M) variant of the SoC design example builds on top of the M2M design to demonstrate a method of using the Intel® FPGA AI Suite IP with continuously streaming input data.

The application example is a typical video stream being processed with ResNet50 to detect physical objects in the images, such as a person, cat, or dog.

In the example, test images are stored on the SD card filesystem. These images are loaded into host memory and a DMA (memory-to-streaming) IP is used to create a simulated video stream.

Figure 6. Block Diagram of S2M Variant
The s2M variant appears in Platform Designer as follows:

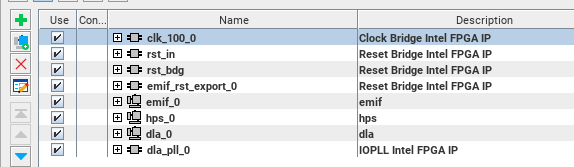

Figure 7. S2M Variant in Platform Designer

Section Content
Streaming Enablement for Intel FPGA AI Suite
Nios V Subsystem
Streaming System Operation
Resolving Input Rate Mismatches Between the Intel FPGA AI Suite IP and the Streaming Input
The Layout Transform IP as an Application-Specific Block
