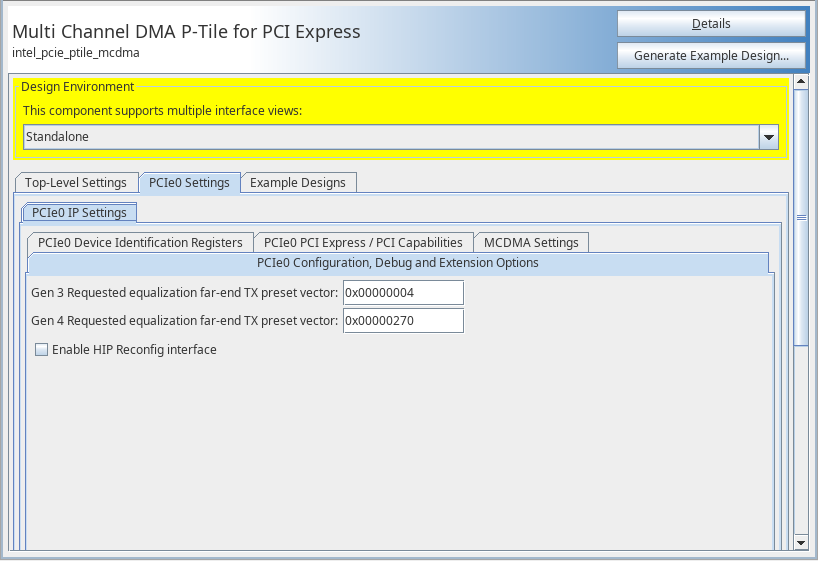

Figure 20. PCIe0 Configuration, Debug and Extension Options
Table 53.  PCIe0 Configuration, Debug and Extension Options
Parameter Value Default Value Description

Gen 3 Requested equalization far-end TX preset vector

0 - 65535

0x00000004 (for P-Tile)

0x00000200 (for F-Tile)

Specifies the Gen 3 requested phase 2/3 far-end TX preset vector. Choosing a value different from the default is not recommended for most designs.

Gen 4 Requested equalization far-end TX preset vector

0 - 65535

0x00000270 (for P-Tile)

0x00000080 (for F-Tile)

Specifies the Gen 4 requested phase 2/3 far-end TX preset vector. Choosing a value different from the default is not recommended for most designs.

Predetermined number of lanes

16

8

4

2

1

Maximum link width

Defines the number of lanes which are connected and good.

Enable HIP Reconfig interface

On / Off

Off

Enables HIP reconfiguration interface
