4.3.2. Mapping the LAI File Pins to Available I/O Pins

To assign pin locations for the LAI:

  1. Select Pins in the Setup View list

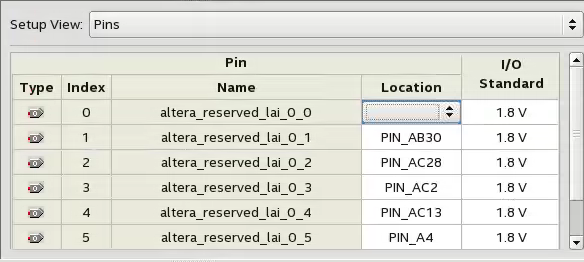

    Figure 97. Mapping LAI file Pins
  2. Double-click the Location column next to the reserved pins in the Name column, and select a pin from the list.
  3. Right-click the selected pin and locate in the Pin Planner.
Related Information
Level Two Title
