6.1. Device Selection and Analysis Example

This section illustrates the setting of Intel® FPGA Power and Thermal Calculator (PTC) parameters for an example thermal analysis of a PCIe board. The first step in the design process is to select an FPGA device.

For the purpose of this example, choose a AGFA014R24A Agilex™ 7 device, which has E and P transceiver tiles in addition to the core die.

Table 4.   Agilex™ 7 FPGA AGFA014R24A Details
Feature Value Comment
Family Agilex™ 7
Device AGFA014R24A Agilex™ 7 FPGA with P and E tiles.
Package R24A 47x36mm BGA package
Device Grade Extended -1 standard power
Transceiver Grade P1

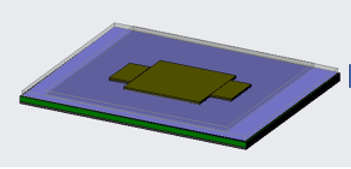

Figure 6. Top View of AGFA014R24A with Integrated Heat Spreader (IHS) Removed
