3.1.4.3. PHY Status

PHY status provides the status information for each of the PMA that you use in your Ethernet IP core.
  • TX PLL Locked: Displays the TX PLL lock status and asserts when all the physical TX lanes are stable and ready to transmit data for the corresponding Ethernet channel.
  • RX CDR (Clock Data Recovery PLL) Locked: Displays the RX CDR lock status and asserts when the corresponding physical lane's RX CDR PLL has locked to data.

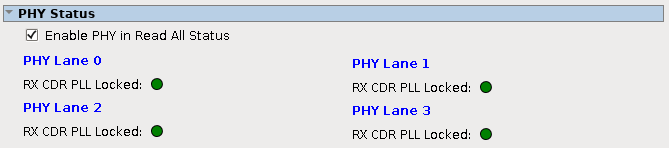

Figure 23. Example of PHY Status Tab
