2.3.1. I/O Assignments with the Intel® Quartus® Prime Assignment Editor

You can assign all instance-specific settings and constraints through the Intel® Quartus® Prime Assignment Editor. You can filter assignments by node name or category.

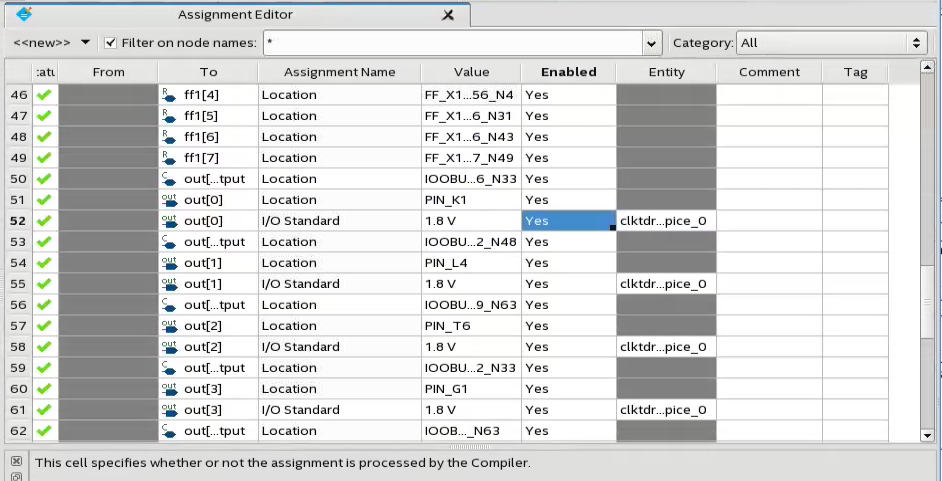

Figure 4.  Intel® Quartus® Prime Assignment Editor This figure shows an example of the user interface and does not represent actual components, features, or settings supported by F-Series and I-Series FPGAs.

Section Content
Assigning Pin I/O Standards in the Intel Quartus Prime Assignment Editor
Assigning Programmable IOE Features in the Intel Quartus Prime Assignment Editor
GPIO Programmable IOE Features Assignment Names and Settings
