6.7. Application Specific Design Example

This design example demonstrates the PHY Lite for Parallel Interfaces FPGA IP implementation for a NAND Flash design in Arria® 10 devices.

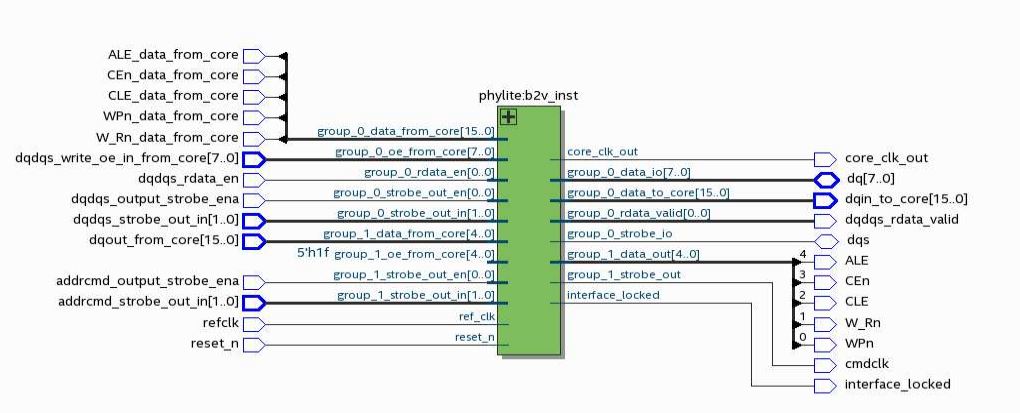

The following figure shows the RTL view of the design example.

Figure 176.  RTL Viewer for a NAND Flash Simple Design Based on the PHY Lite for Parallel Interfaces FPGA IP

Section Content
Implementation using the PHY Lite for Parallel Interfaces FPGA IP
