6.2.3.6. Viewing High-Speed Serial Interfaces (HSSI) in Chip Planner

The Chip Planner displays a detailed block view of the receiver and transmitter channels of the high-speed serial interfaces. To display the HSSI block view, double-click Report HSSI Block Connectivity in the Tasks pane.

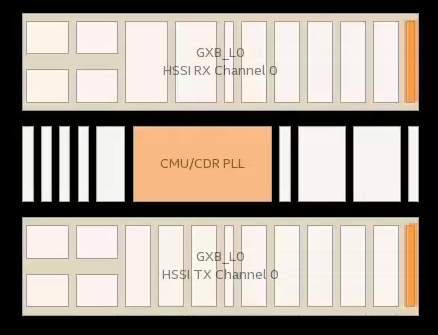

Figure 85.  Arria® 10 HSSI Channel Blocks
