7.1.3.6. Viewing High-Speed Serial Interfaces (HSSI)

The Chip Planner displays a detailed block view of the receiver and transmitter channels of the high-speed serial interfaces. To display the HSSI block view, double-click Report HSSI Block Connectivity in the Tasks pane.

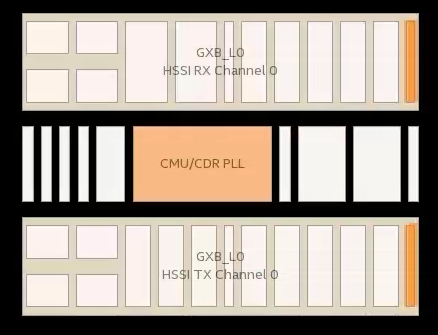

Figure 58.  Intel® Arria® 10 HSSI Channel Blocks
