3.6.7. Moving Nodes in the Schematic View

Rearrange items in the schematic view by dragging to destination.

To move a node from one area of the netlist to another, select the node and hold down the Shift key. Legal placements appear as shaded areas within the hierarchy. Click to drop the selected node.

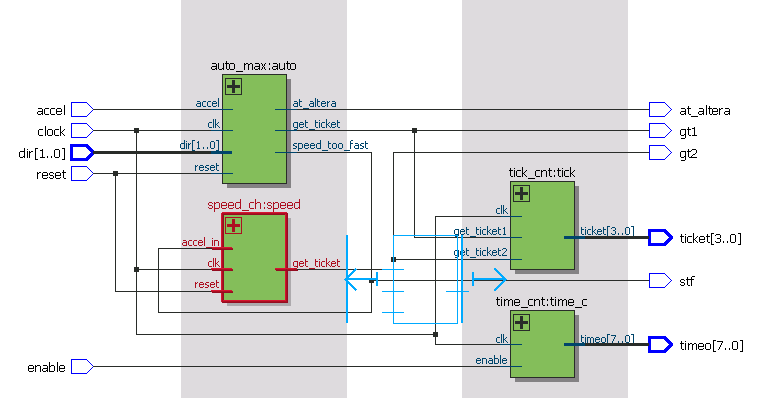

Figure 10. Legal Placement when Moving Nodes

To restore the schematic view to its default arrangement, right-click and click Refresh.
