2.1.2. Generating the Design

Procedure

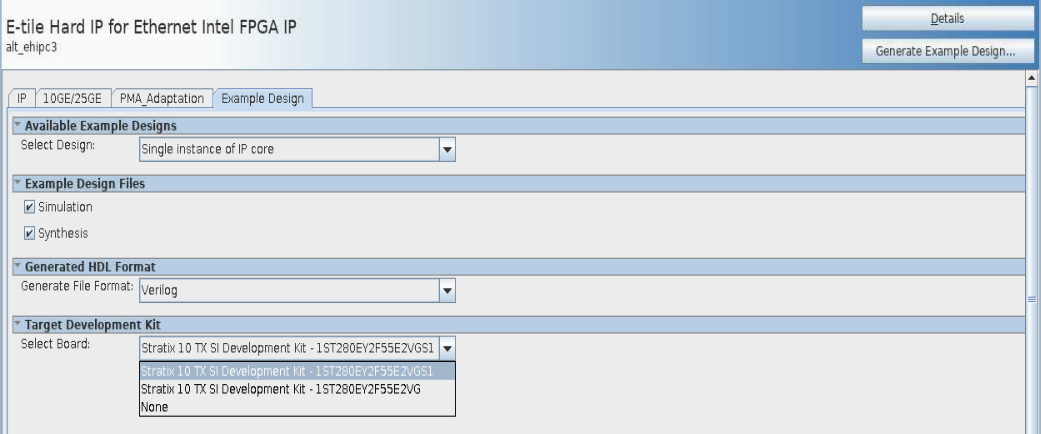

Example Design Tab in the E-Tile Hard IP for Ethernet Intel FPGA IP Parameter Editor
If you do not already have an Quartus® Prime Pro Edition project in which to integrate your E-Tile Hard IP for Ethernet Intel FPGA IP core, you must create one.
  1. In the Quartus® Prime Pro Edition software, click File > New Project Wizard to create a new Quartus Prime project, or File > Open Project to open an existing Quartus® Prime project. The wizard prompts you to specify a device.
  2. Specify the device family Stratix® 10 and select a device that meets all of these requirements:
    • Transceiver tile is E-tile
    • Transceiver speed grade is -1, -2 or -3
    • Core speed grade is -1 or -2
  3. Click Finish.
Follow these steps to generate the E-Tile Hard IP for Ethernet Intel FPGA IP hardware design example and testbench:
  1. In the IP Catalog, locate and select E-Tile Hard IP for Ethernet Intel FPGA IP . The New IP Variation window appears.
  2. Specify a top-level name <your_ip> for your custom IP variation. The parameter editor saves the IP variation settings in a file named <your_ip> .ip.
  3. Click OK. The parameter editor appears.
  4. On the IP, 100GE, or 10GE/25GE tabs, specify the parameters for your IP core variation.
  5. The hardware design examples provide enable internal serial loopback by default.
  6. Change PMA adaptation setting. To change the PMA adaptation setting for the optimal performance, go to PMA Adaptation tab. This step is optional.
    1. Select a PMA adaptation preset for PMA adaptation Select parameter.
    2. Click PMA Adaptation Preload to load the initial and continuous adaptation parameters.
    3. Specify the number of PMA configurations to support when multiple PMA configurations are enabled using Number of PMA configuration parameter.
    4. Select which PMA configuration to load or store using Select a PMA configuration to load or store.
    5. Click Load adaptation from selected PMA configuration to load the selected PMA configuration settings.

    For more information about the PMA adaptation parameters, refer to the E-Tile Transceiver PHY User Guide.

    Note: If you require more information about the PMA adaptation parameters, contact My Intel support.
  7. On the Example Design tab, under Example Design Files, select the Simulation option to generate the testbench and the compilation-only project. Select the Synthesis option to generate the hardware design example. You must select at least one of the Simulation and Synthesis options to generate the design example.
  8. On the Example Design tab, under Generated HDL Format, select Verilog HDL or VHDL. If you select VHDL, you must simulate the testbench with a mixed-language simulator. The device under test in the ex_<datarate> directory is a VHDL model, but the main testbench file is a System Verilog file.
  9. Under Target Development Kit, select the Stratix 10 TX Transceiver Signal Integrity Development Kit-1ST280EY2F55E2VGSI, Stratix 10 TX Transceiver Signal Integrity Development Kit-1ST280EY2F55E2VG or select None. If you select a specific Development Kit as the Target Development Kit, the design example is generated based on a specific device and it overwrites the device you selected in your project file. If you select None as the Target Development Kit, ensure the selected device is your targeted device and adjust the pins assignment in the .qsf file. By default, .qsf file is generated based on the device used in the development kit
  10. Click the Generate Example Design button. The Select Example Design Directory window appears.
  11. If you want to modify the design example directory path or name from the defaults displayed (alt_ehipc3_ 0_example_design), browse to the new path and type the new design example directory name (<design_example_dir>).
