4.3.1. Programming Sensitivity Map Header File into Memory

You can program an .smh into any type of memory. For example, to use CFI flash memory, follow these steps:

  1. Rename the .smh to <file_name>.hex, or convert it to little-endian <file_name>.hex if required.
  2. In the Quartus® Prime software, click File > Convert Programming Files.
  3. In the Convert Programming Files window under Output programming file, select the desired options.
  4. To add hex data, follow these steps:
    1. Click Add Hex Data.
    2. In the Add Hex Data dialog box, turn on Set start address and enter a start address.
    3. In the Hex file box, click browse to select the .hex file, and click OK.

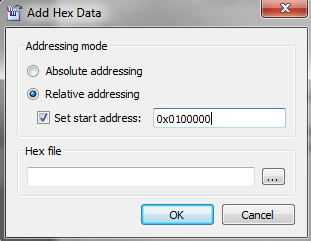

    Figure 13. Add Hex Data Dialog Box
  5. Click Generate.
