1.6.2. Upload the Flexlm License Server to the Server Machine
To obtain and upload a license server installer in the Azure* cloud:
- On your local machine, visit:

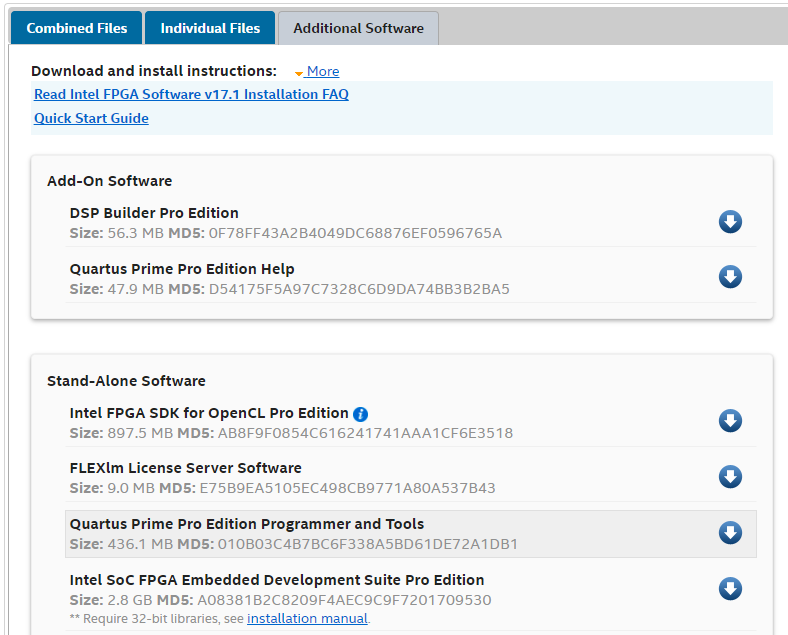

You enter the Intel® FPGA download page.Figure 12. Intel® FPGA Download Page
- Specify the parameters for your download file:
Table 6. Download Parameters Parameter Value Select Edition Pro Select Release 17.1 Operating System Linux Download Method Direct Download - Click the Additional Software tab.
- Check Flexlm License Server Software.
- Click Download Selected Files.
- When the download completes, send the file to the VM:
- Linux:
scp -i <private-key> <FlexLM-installer-filename> <user>@<host>:/home/<user>/
- Windows:
pscp -i <key-file-in-ppk-format> <FLexLM-installer-filename> <user>@<host>:/home/<user>/
- Linux:
The installer for the Flexlm License server is now in the virtual machine.
Related Information
