3.9.2. Archiving Projects for Service Requests

When archiving projects for a service request, include all needed file types for proper debugging by customer support.

To identify and include appropriate archive files for an Intel service request:

  1. Click Project > Archive Project and specify the archive file name.
  2. Click Advanced.
  3. In File set, select Service request to include files for Intel Support.
    • Project source and setting files (.v, .vhd, .vqm, .qsf, .sdc, .qip, .qpf, .cmp)
    • Automatically detected source files (various)
    • Programming output files (.jdi, .sof, .pof)
    • Report files (.rpt, .pin, .summary, .smsg)
  4. Click OK, and then click Archive.

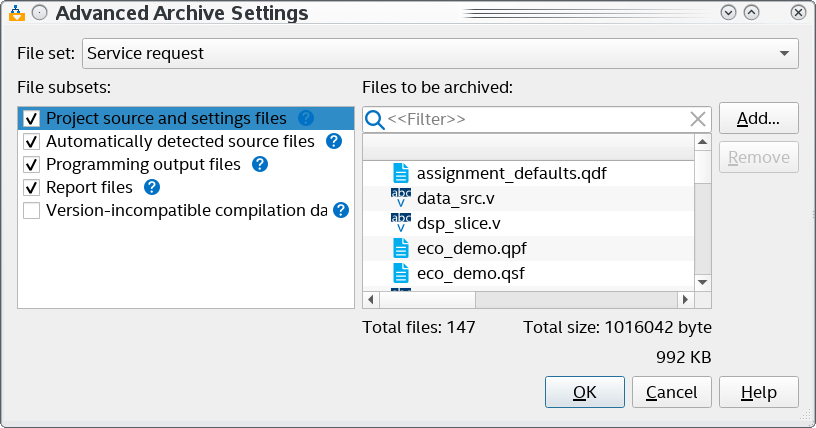

Figure 33. Archiving Project for Service Request
