1.1.2.2. Setting Up the Simulation Environment

  1. Follow the guidelines in Getting Started with the Design Store to download and install the reference design files.
  2. Open the reference design .qpf file after successfully installing the design templates.
  3. Click on Assignments -> Settings....
  4. Select EDA Tools Settings -> Simulation.
  5. At the Settings window, choose ModelSim* - Intel® FPGA Edition for Tool Name. You may choose VHDL, Verilog HDL or System Verilog as the output netlist format.

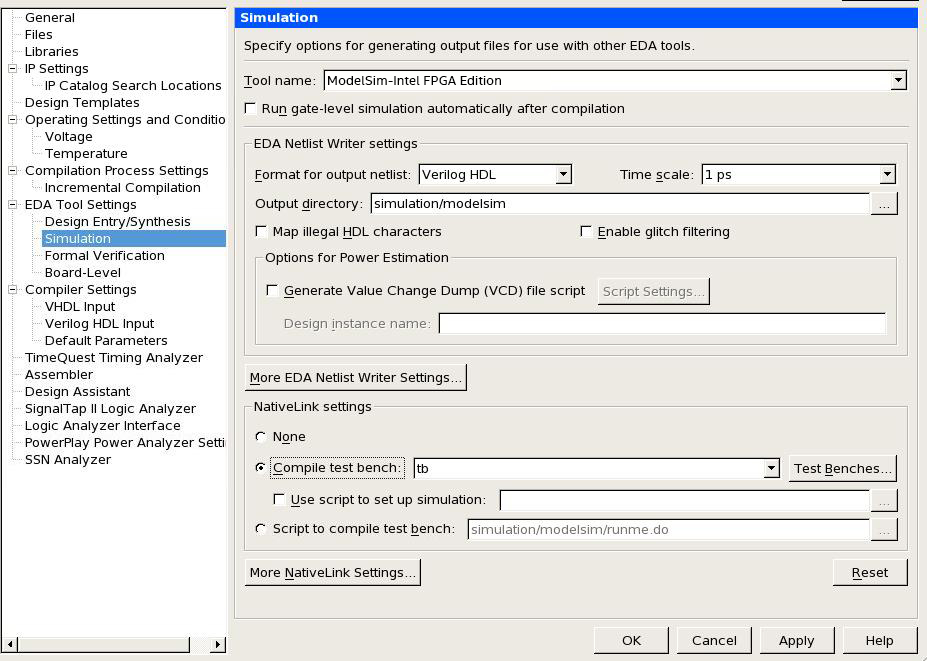

    Figure 2. Simulation Settings using EDA Tools in the Intel® Quartus® Prime Software
  6. Open dut_INPUT.qsys file and make sure the IP has the same configuration shown below:

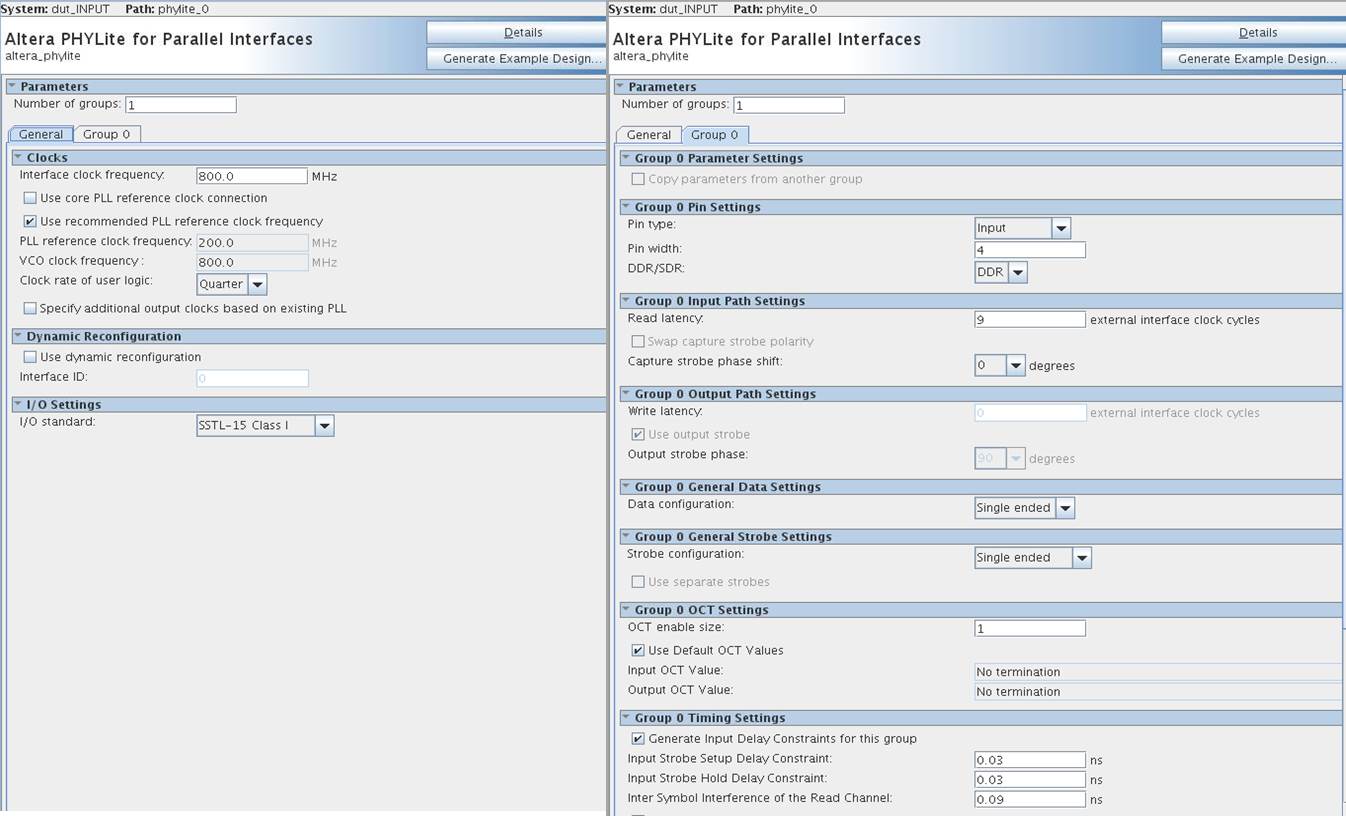

    Figure 3. Configuration for dut_INPUT Module
  7. Make sure that the Capture strobe phase shift is set to 0 degrees to align the incoming data to strobe edge during data transfer.
  8. Click Generate HDL... and select your desired simulation model format. Next, click Generate to generate the simulation model for the dut_INPUT module. Click Close and Finish when the generation is complete.

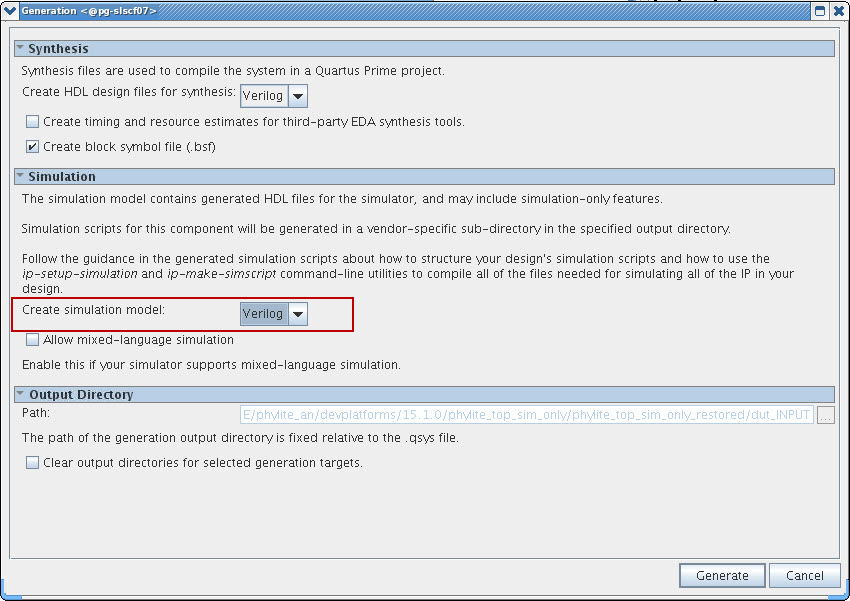

    Figure 4. Generating Simulation Model
  9. From the Intel® Quartus® Prime software, open dut_OUTPUT.qsys file and make sure the IP has the same configuration shown below:

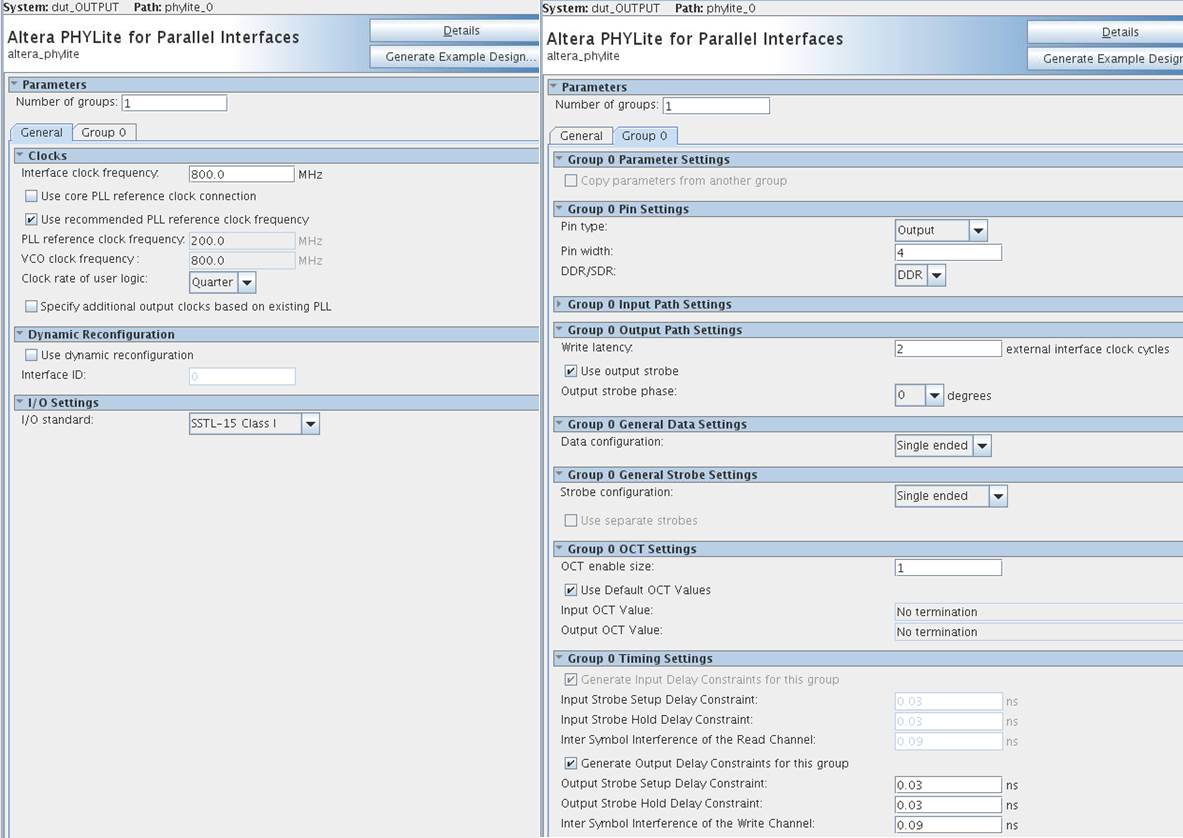

    Figure 5. Configuration for dut_OUTPUT Module
  10. Make sure the Output strobe phase is set to 0 degrees to align outgoing data with strobe edge during data transfer.
  11. Repeat step 9 to generate simulation model for dut_OUTPUT module.
  12. From the Intel® Quartus® Prime software, click Processing > Start > Start Analysis & Elaboration to compile the design.
