1.2.3. Downloading and Installing the BMS Reference Design
- In the Altera Design Store, download the relevant reference design bms_soc_max10m50.par file for the MAX10 development kit:
- Select Design Examples, select 15.0 for the Quartus II version, then search for BMS.
To obtain further support on the reference design, contact your local Altera sales representative. - In the Quartus II software, click File > New Project Wizard .
- Click Next.
- Enter the path for project working directory and enter bms_soc_max10m50 for the project name.
- Click Next.
- Select Project Template.
- Click Next.
- Click Install the design templates.
- Browse to select the bms_soc_max10m50.par file for the reference design and browse to the destination directory where you want to install it.

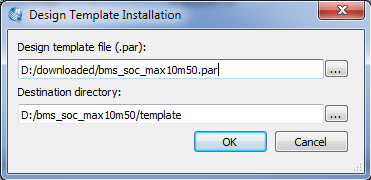

Figure 1. Design Template Installation
- Click OK on the design template installation message.
- Select the BMS Reference design design example.
Figure 2. Design Template
- Click Next.
- Click Finish.
The Quartus II software expands the archive and sets up the project, which may take some time.Figure 3. Directory Structure
