11.9.8.1. Connecting the Traffic Generator

  1. In the Intel Quartus Prime software, open the System Console by clicking Tools > System Debugging Tools > System Console. In the System Console, load the SRAM Object File (.sof) with which you programmed the board.
  2. Select the emif_tg_cfg toolkit instance.
  3. Select EMIF TG Configuration Toolkit.
  4. Click Open Toolkit to launch the toolkit.

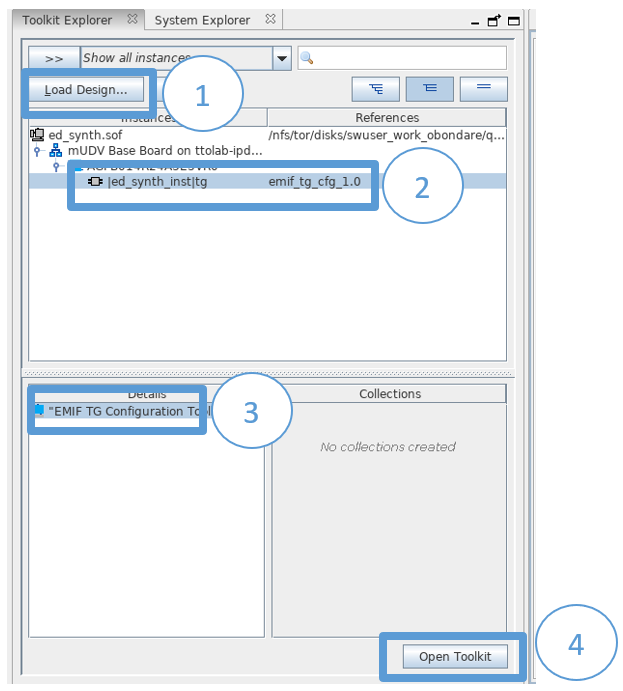

Figure 196. Connecting the Traffic Generator
