11.7.4.2.2. Rerunning the Traffic Generator

You can rerun the traffic generator.

To rerun the Traffic Generator, select the desired number of iterations from the Number of Iterations pulldown menu, and click Assert TG Reset (Run TG) to rerun the traffic generator with each iteration.

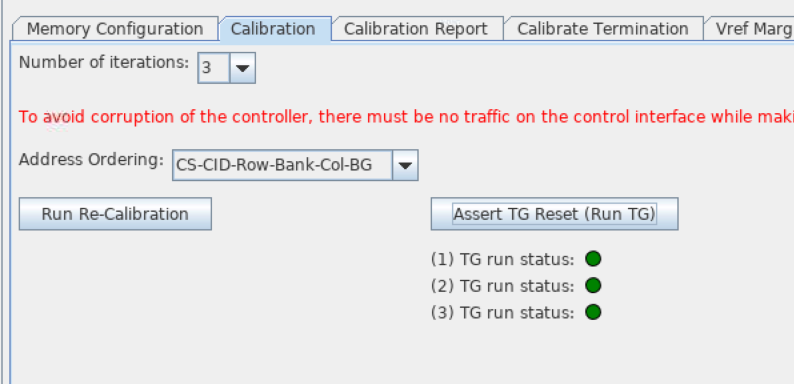

The system reports the TG run status for each iteration of the traffic generator. A green dot indicates a pass, while a red dot indicates a failure.

Note: The Assert TG Reset (Run TG) button is available only when the default traffic generator is instantiated in the design example. If the EMIF control interface is driven by TG2 or by custom user logic, the Assert TG Reset (Run TG) button is not available. If you use TG2 in the design example, you may run it through the TG2 Unified Toolkit.

Changing Address Ordering

To change the address ordering, you can select one of the settings from the Address Ordering dropdown menu.

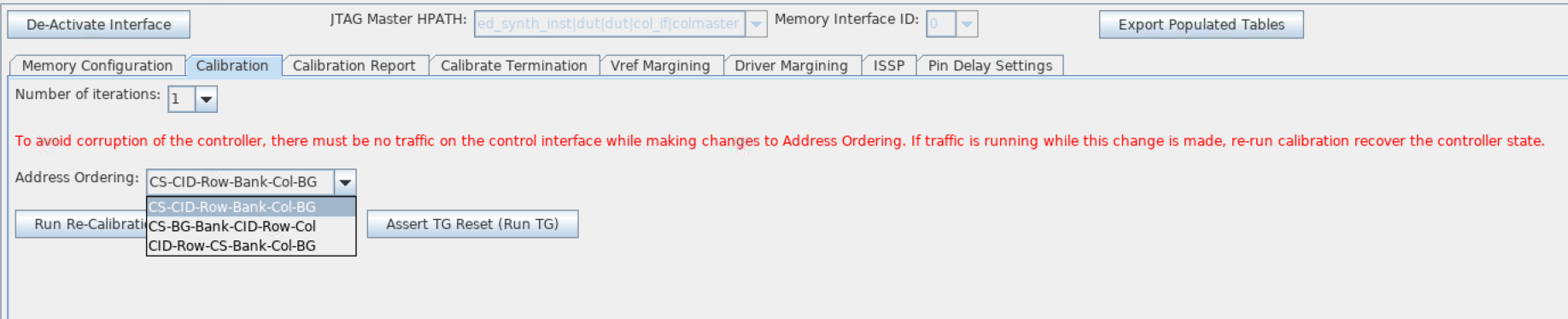

Figure 140. Address Ordering Menu
