3.3.4.1.2. DDR4 Write Calibration

Write Leveling

Write leveling calibration aligns the write DQS to the memory clock, to compensate for skews. In general, leveling calibration tries a variety of delay values to determine the edges of the write window, and then selects an appropriate value to center the window.

Write leveling occurs before write deskew, therefore only one successful DQ bit is required to register a pass. Write leveling staggers the write DQ bus to ensure that at least one DQ bit falls within the valid write window.

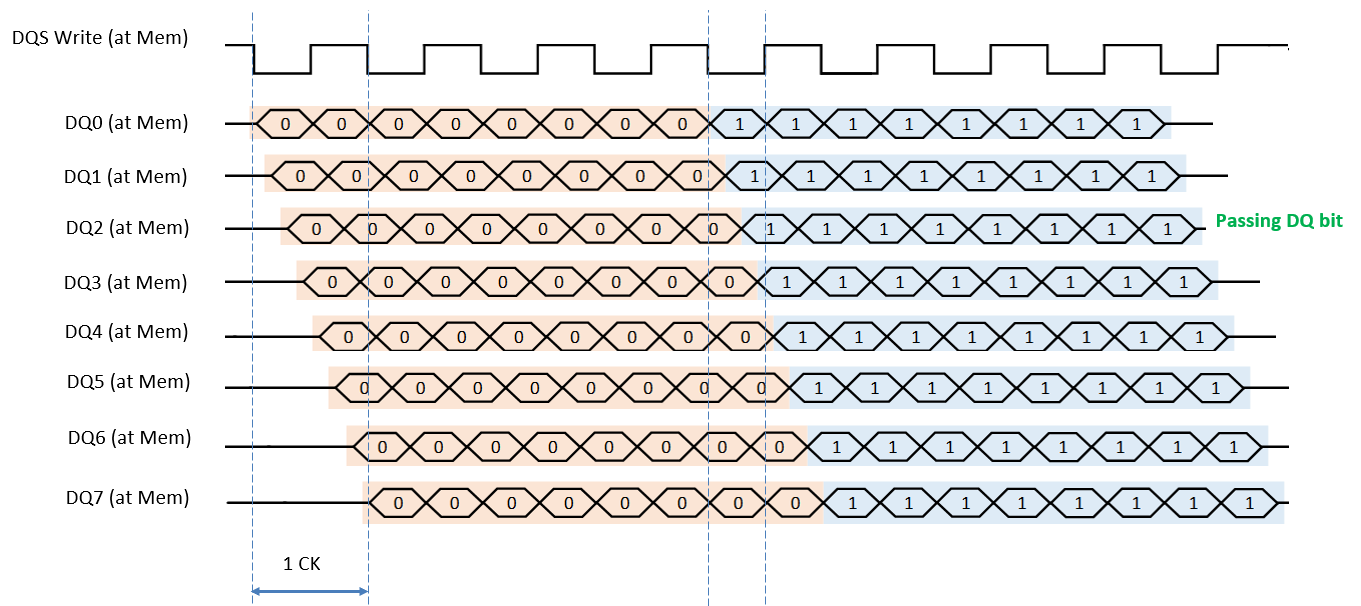

Figure 45. Staggering DQ bus during Write Leveling

Write Deskew

Write Deskew performs per-bit deskew of write data relative to the write strobe and clock. Write deskew calibration does not change dqs_out delays; the write DQS is aligned to the CK clock during write leveling.

VREF-OUT Calibration

VREF-OUT calibration tunes the VREF setting at DDR4 memory device by using mode register set (MRS) commands. The VREF-OUT calibration algorithm is similar to the VREF-IN calibration algorithm. The algorithm picks the VREF-OUT setting that gives the best write window.
