8.2.4.2.3. P0/P1 Configuration Space

This tab allows you to read the configuration space registers for that port. You will see a separate tab with the configuration space for each port.

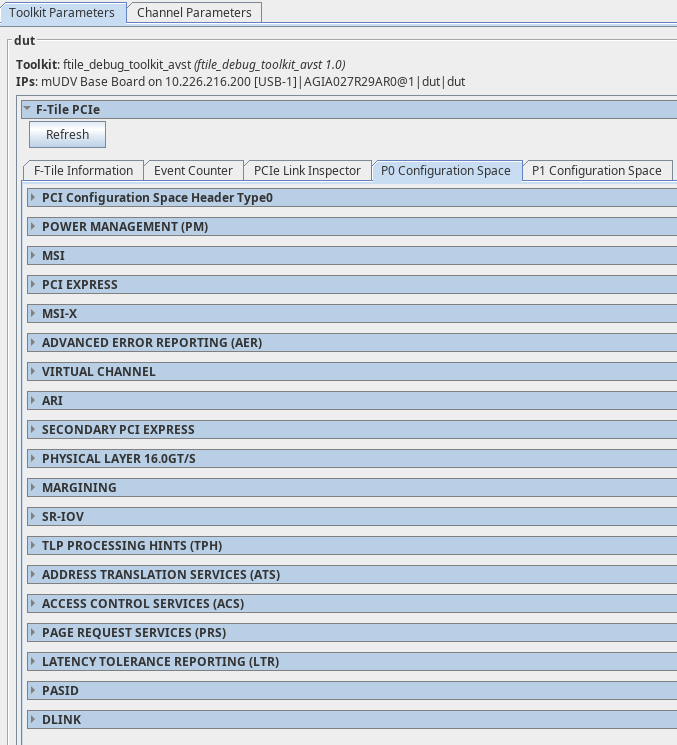

Figure 79. Example of F-Tile PCIe Configuration Settings
