1.4. Generating the EMIF Design Example for Simulation
For the Intel® Cyclone® 10 GX development kits, there are presets that automatically parameterize the EMIF IP and generate pinouts for the specific board.

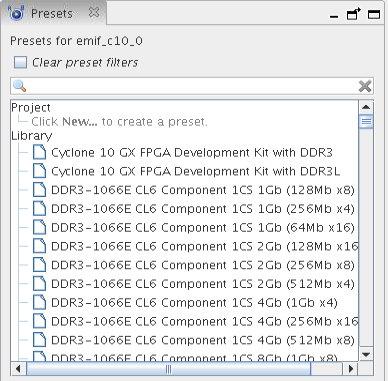

- Verify that the Presets window is visible. If the Presets window is not visible, display it by selecting .
- In the Presets window, select the appropriate development kit preset and click Apply.
Successful generation of the EMIF design example creates multiple file sets for various supported simulators, under a sim/ed_sim directory.

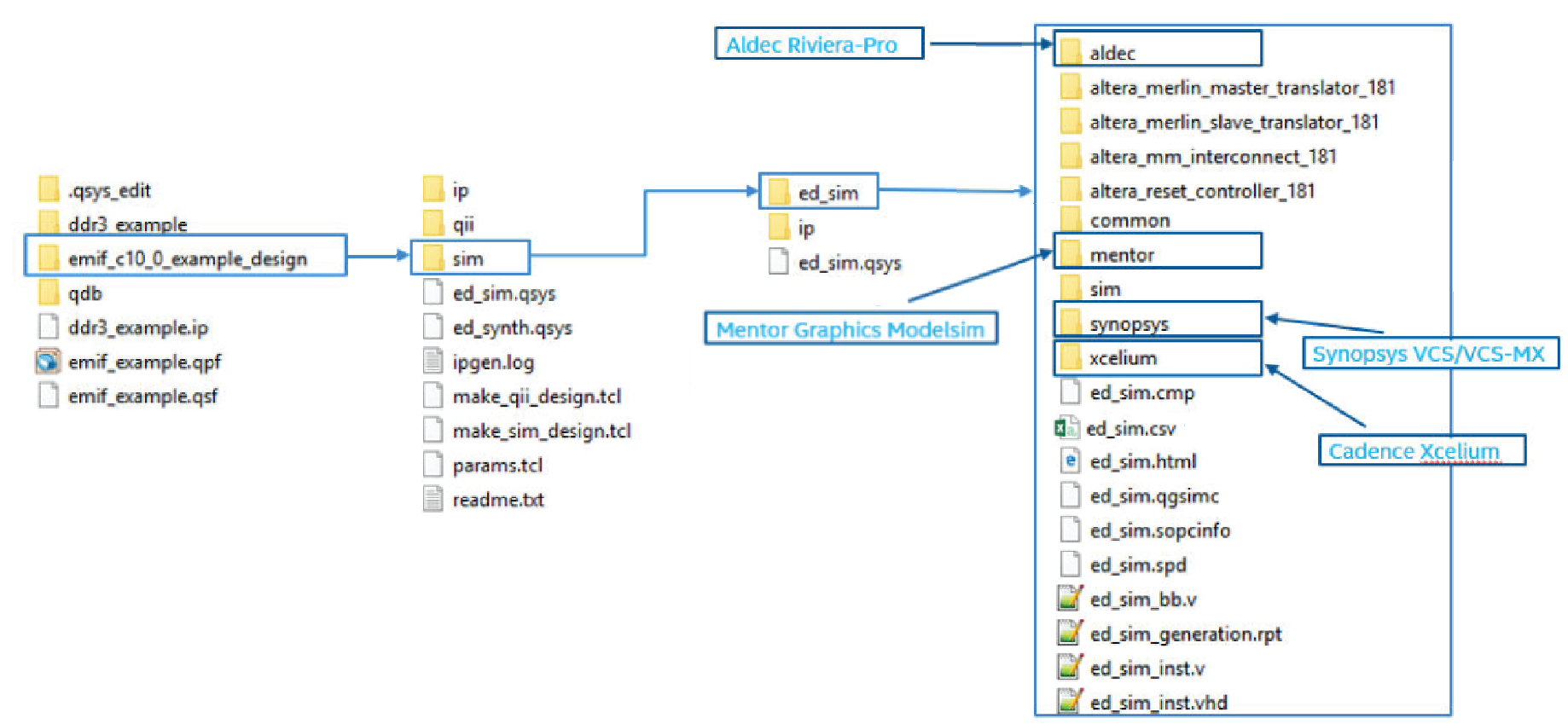

Figure 4. Generated Simulation Design Example File Structure
Note:
If you don't select the Simulation or Synthesis checkbox, the destination directory will contain Platform Designer design files, which are not compilable by the Intel® Quartus® Prime software directly, but can be viewed or edited under the Platform Designer. In this situation you can run the following commands to generate synthesis and simulation file sets.
- To create a compilable project, you must run the quartus_sh -t make_qii_design.tcl script in the destination directory.
- To create a simulation project, you must run the quartus_sh -t make_sim_design.tcl script in the destination directory.
