DDR5/DDR4 and LPDDR5/LPDDR4 EMIF FPGA IP
DDR4 and DDR5 offer higher bandwidth and improved performance over previous generations, with DDR5 providing further enhancements in speed and power efficiency. LPDDR4 and LPDDR5 are optimized for low power consumption, making them ideal for embedded applications, with LPDDR5 offering even faster data rates and improved energy management. When integrated with Altera FPGAs these memory technologies enable faster data processing and more efficient power usage for a wide range of applications including networking, cloud and edge.

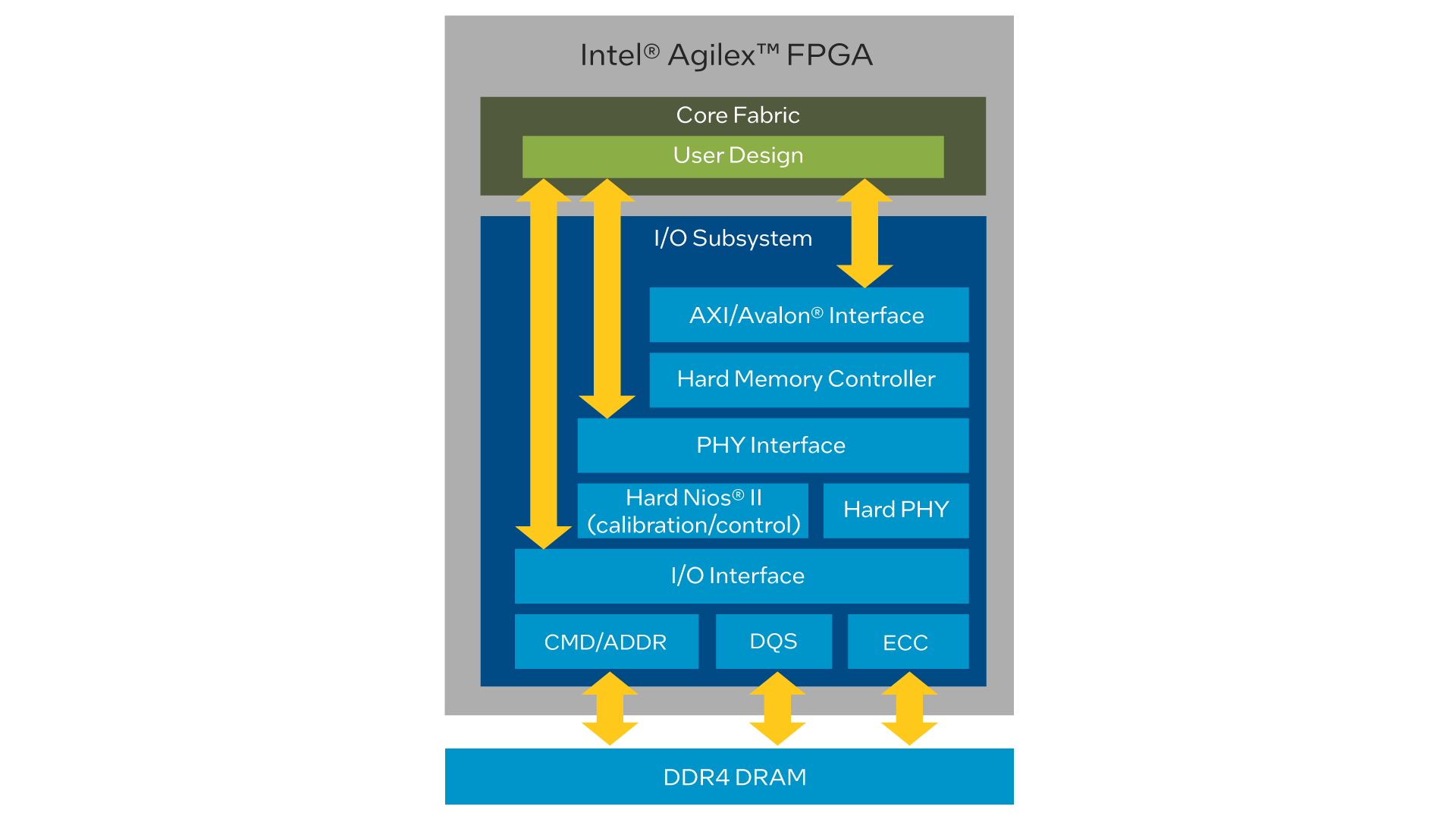

Hardening the Controller and PHY Offers Several Advantages which Include:
- Shorter development cycles and faster time to market due to pre-closed timing
- More FPGA fabric logic resources available for user application
- Improved fmax, efficiency and latency
- Low power solution
Utilize these advantages on Agilex™ 3, 5, and 7 devices, Stratix® 10 devices, and Arria® 10 FPGAs across various applications: industrial, wireless/wireline, broadcast, medical, retail, test measurement, and more.
EMIF Protocols & Features
Feature |
Agilex™ 3 FPGAs | Agilex™ 5 FPGAs |
Agilex™ 7 FPGA M-Series |
Agilex™ 7 FPGA I- and F- Series |
Stratix® 10 FPGA |
|---|---|---|---|---|---|
DDR5 |
No | Yes |
Yes |
No |
No |
LPDDR5 |
No | Yes |
Yes |
No |
No |
DDR4 |
No | Yes |
Yes |
Yes |
Yes |
LPDDR4 |
Yes | Yes |
No |
No |
No |
QDRIV |
No | No |
No |
Yes |
Yes |
Maximum Interface Width |
X32 (LPDDR4) | X72 (DDR4) |
X80 (DDR5) |
X72 (DDR4) |
X72 (DDR4) |
Maximum Interface Rate |
2133 Mbps | 4667 Mbps (LPDDR5) |
5600 Mbps (DDR5) |
3200 Mbps |
2666 Mbps |
Maximum Ranks Supported |
2 | 2 |
2 |
4 |
4 |
Debug Features
EMIF Debug toolkit features include the below basic and advanced debug capabilities:
- Viewing calibration margin, status, pin delay and VREF settings
- Re-running calibration, traffic generator, and driver margining
- Updating delay settings, and termination settings
- Configurable Traffic Generator to send test traffic patterns
Agilex™ 5 FPGA In-Action External Memory Interfaces IP
Watch the demo on the High-Speed External Memory Interfaces that we offer on the Agilex 5 devices.
