2.2. Configuring the High Bandwidth Memory (HBM2E) Interface FPGA IP

The following steps illustrate how to generate and configure the HBM2E FPGA IP. These steps illustrate the IP Catalog (standalone) configuration flow. The Platform Designer (standalone) flow is generally similar.
  1. Verify that the IP Catalog window is visible. If the IP Catalog window is not visible, select View > Utility Windows > IP Catalog.

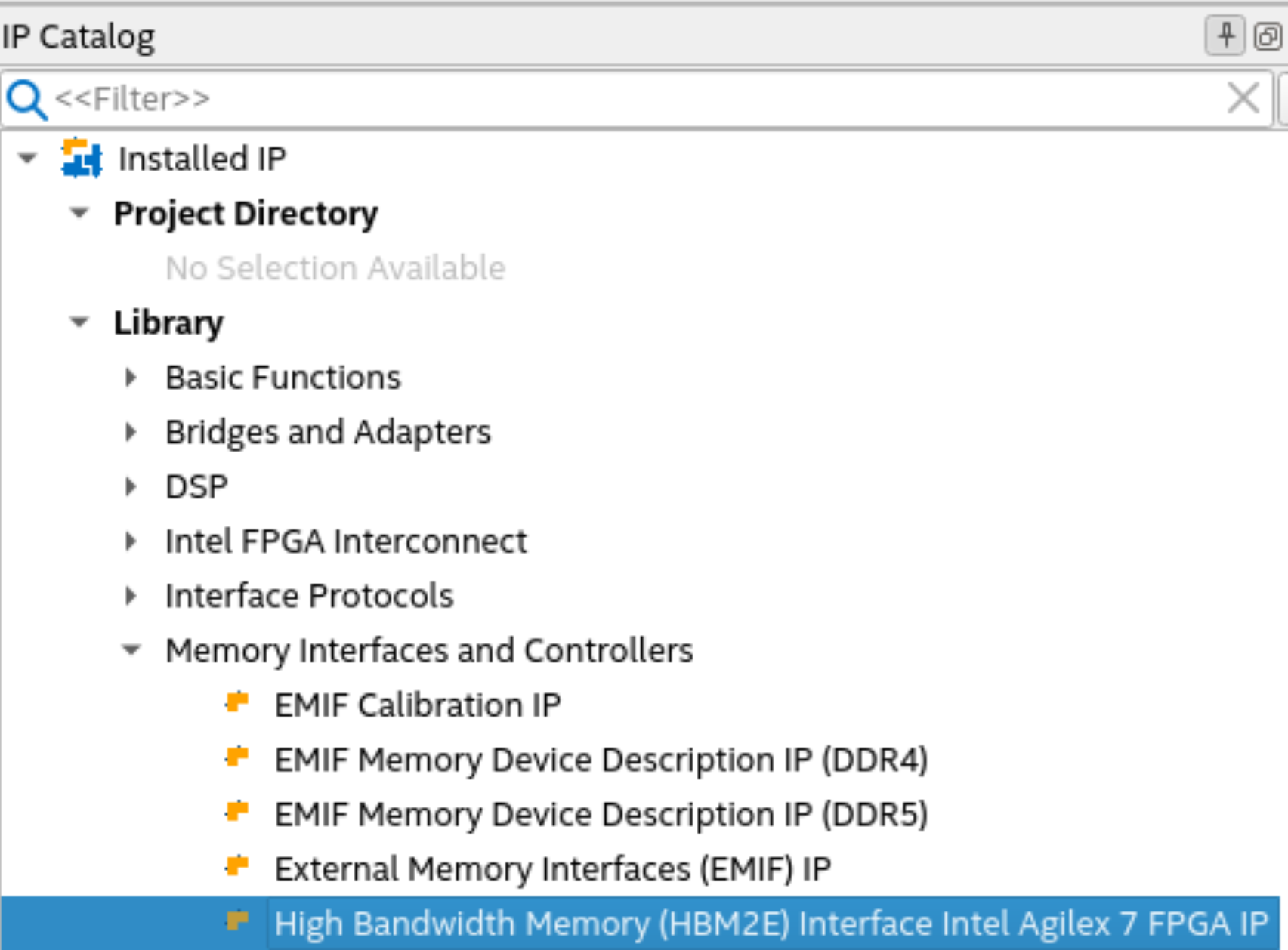

  2. In the IP Catalog window, select Installed IP > Library > Memory Interfaces and Controllers > High Bandwidth Memory (HBM2E) Interface Agilex™ 7 FPGA IP.

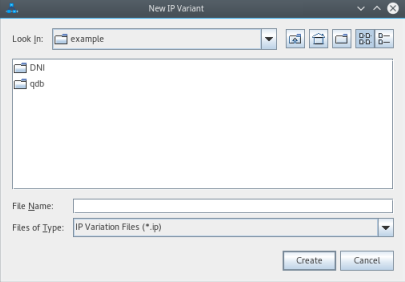

  3. In the New IP Variant window, type a name (<user instance name>) for your HBM2E IP in the File Name field. Click Create.

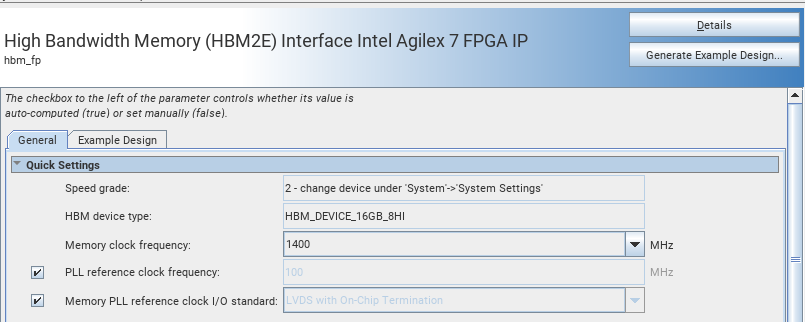

  4. In the IP Parameter Editor Pro window, configure the parameters on each tab to reflect actual HBM2E interface and system requirements. For information on individual parameters, refer to the Creating and Parameterizing the High Bandwidth Memory (HBM2E) Interface FPGA IP section in the High Bandwidth Memory (HBM2E) Interface Agilex™ 7 M-Series FPGA IP User Guide.
