3.5.2.1. Confirming Arria® 10 SX SoC FPGA Development Kit (DK-SOC-10AS066S) Board Settings

Confirm the board settings as follows:

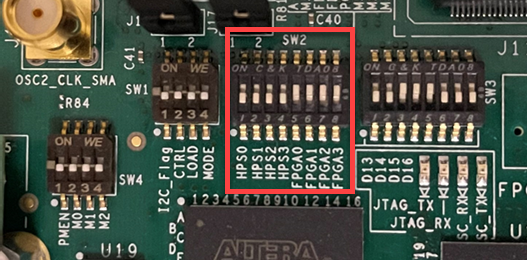

  1. Ensure that the Arria® 10 SX SoC FPGA Development Kit (DK-SOC-10AS066S) has the required DIP switch and jumper settings. The SoC example design requires that all DIP switches have their default settings except for SW2 switches 5, 6, 7, and 8, which should be switched ON:

    For more details about default DIP switch and jumper settings, refer to Arria 10 SoC Development Kit User Guide .

  2. Ensure that the HILO cards are fitted correctly.

    The Arria® 10 SX SoC FPGA Development Kit (DK-SOC-10AS066S) includes two DDR4 HILO cards: the HPS memory (1GB) and the FPGA memory (2GB). Both the HPS Memory and FPGA Memory DDR4 HILO modules must be fitted as shown in the following image:
