2.7.1. Input Streaming

When input streaming is configured in the IP system architecture as described in Parameter Group: input_stream_interface, and the Activate_streaming DMA control register is set to 1, the FPGA AI Suite IP accepts inputs through the AXI4-Stream signals that are exposed at the top-level instead of being memory mapped. The exposed signals are as follows:
Table 8.   FPGA AI Suite IP AXI4-Stream Input Interface Signals
Signal Source Width Description
ACLK Clock 1 Data source clock
ARESETn Reset 1 Data source active-low reset
TVALID Data source 1 Input signal that indicates whether the values in TDATA are valid.
TREADY FPGA AI Suite IP 1 Output signal that indicates whether the FPGA AI Suite IP is ready to accept data.
TDATA Data source DATA_WIDTH Input data bus.
Schematically, the input streaming component is constructed as follows:
Figure 8. Input Streamer Schematic View


The streamed input tensor format must be in HWC, where channels is the fastest-changing dimension. The HWC tensors are internally folded and vectorized to CHWCvec tensors that the PE array can ingest (as described in Input Feature Tensor In-Memory Format). Data also internally crosses from the source clock domain to the FPGA AI Suite IP internal clock domain.

This subset of the AXI4 streaming protocol signals implements a streaming interface where transfers take place whenever the TREADY and TVALID signals are asserted. The input streaming interface does not implement the TSTRB or TKEEP signals, which means that all data in a valid TDATA signal transfer must be valid unless it is the last transfer. The TLAST signal is also unused at the input, because the FPGA AI Suite IP tracks the state of the transfer internally.

Any data beyond the boundary of the input tensor in the final transfer of an input feature that is not a multiple of DATA_WIDTH is ignored. The data stream producer is responsible for padding features, if needed, so that adjacent features to not share the same data transfer at the boundary.

The following timing example shows a 3x3x1 input tensor with monotonically increasing pixel values and DATA_WIDTH of 4 bytes. Note the padding in the third transfer.

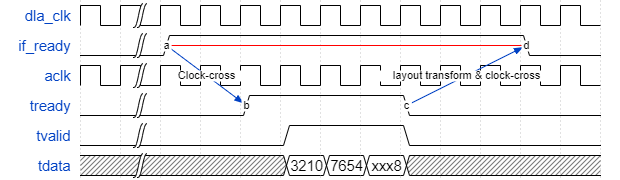

Figure 9. Streaming Input Waveform


The TREADY signal is asserted by the FPGA AI Suite IP whenever the IP is ready for a new input feature and streaming has been activated in the CSR. The TREADY signal comes from the input streamer module and is first asserted once the FPGA AI Suite IP is configured and the input streamer FIFO is not full. The FPGA AI Suite IP accepts the input feature as long as there is space in the FIFO and no backpressure from the downstream system, which means the TREADY signal can be deasserted mid input feature.

When the input streaming interface is enabled, it requires the input layout transform to be enabled and configured as described in Parameter Group: input_stream_interface.

When streaming data is received, it is converted from HWC format, where channels is the fastest-changing dimension in the memory representation, to CHWCvec format, where the input has been vectorized into Cvec-lines that can be input to the PE array.

The layout transform can be configured to either accept FP16 input data or uint8 input data that is converted internally to FP16.

The input streaming module handles clock-domain crossing from the input stream clock domain to that of the FPGA AI Suite IP and also handles width conversion from DATA_WIDTH to CVEC.
