4.6.1.1. Hardware Design Flow

The following sections describe a step-by-step method for building a bootable system for a Nios® V processor application from OCRAM. The example below is built using Intel Arria 10 SoC development kit.

IP Component Settings

  1. Create your Nios® V processor project using Intel® Quartus® Prime and Platform Designer.
  2. Ensure the On-Chip Memory (RAM or ROM) Intel FPGA is added into your Platform Designer system.
  3. Enable Initialize memory content and Enable non-default initialization file with ram.hex in the on-chip memory.
Figure 71. Connections for Nios® V Processor Project

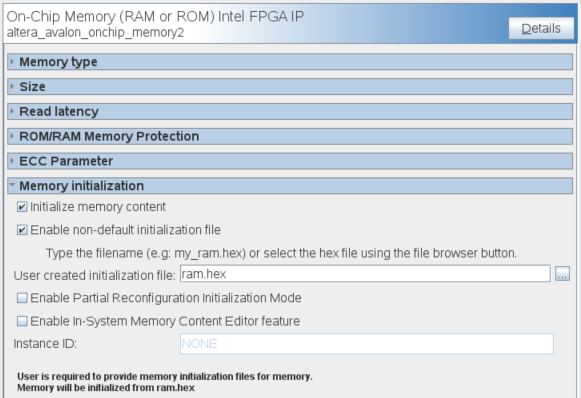

Figure 72. On-Chip Memory (RAM or ROM) Intel FPGA IP Parameter Settings

Reset Agent Settings for Nios® V Processor

  1. In the Nios® V processor parameter editor, set the Reset Agent to OCRAM
    Figure 73. Nios V Processor Parameter Editor Settings
  2. Click Generate HDL, the Generation dialog box appears.
  3. Specify output file generation options and then click Generate.

Intel® Quartus® Prime Settings

  1. In the Intel Quartus Prime software, click Assignment ➤ Device ➤ Device and Pin Options ➤ Configuration.
  2. Set Configuration scheme according to your FPGA configuration scheme
  3. Click OK to exit the Device and Pin Options window.
  4. Click OK to exit the Device window.
  5. Click Start Compilation to compile your project.
