6.2.4. PCIe0 PCI Express / PCI Capabilities Parameters

This group of parameters defines various capability properties of the IP core. Some of these parameters are stored in the PCI Configuration Space - PCI Compatible Configuration Space. The byte offset indicates the parameter address.

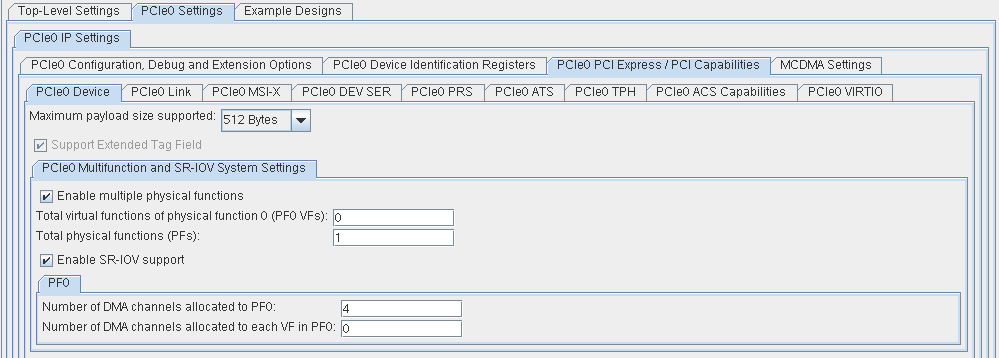

Figure 34. PCIe0 PCI Express / PCI Capabilities Parameters

Section Content
PCIe0 Device
PCIe0 Link
PCIe0 MSI-X
PCIe0 DEV SER
PCIe0 PRS
PCIe0 ACS Capabilities
PCIe0 ATS
PCIe0 TPH
