5.1.7.1. Device

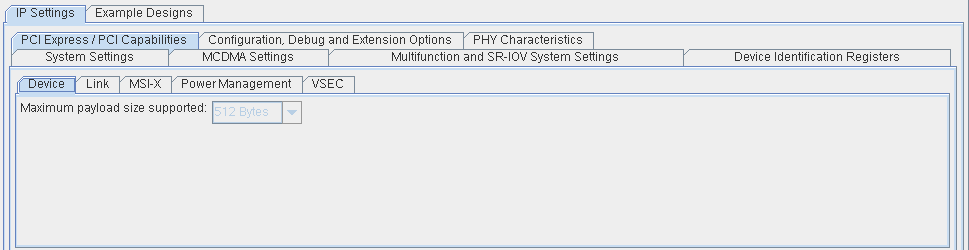

Figure 26. Device Table
Table 63.  Device

Parameter

Possible Values

Default Value

Address

Description

Maximum payload sizes supported

512 bytes
Note: Value is fixed at 512 bytes

512 bytes

0x074

Specifies the maximum payload size supported. This parameter sets the read-only value of the max payload size supported field of the Device Capabilities register.
