Step 3: Compile your Design

The Compiler synthesizes logic design files considering the device characteristics and design constraints.
  1. Run a full design compilation by clicking Processing > Start Compilation.
    Intel® Quartus® Prime Pro Edition displays the compilation stages and progress in the Compilation Dashboard.

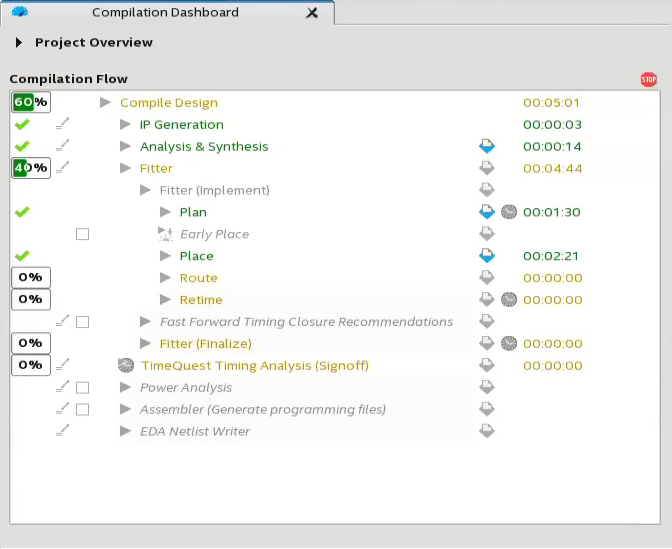

    Figure 3. Compilation Dashboard
    When the compilation finishes, modules that ran successfully show a green check image .
  2. Click Processing > Compilation Report to view a report with detailed project information that helps you determine correct implementation.
    You can right-click report data to locate and edit the source in project files.
For more information, refer to the Intel® Quartus® Prime Pro Edition User Guide: Design Compilation.
