6.1.2. Setting up the CvP Parameters in Device and Pin Options
Follow these steps to specify CvP parameters:
- On the Intel® Quartus® Prime Assignment menu, select Device, and then click Device and Pin Options.
- Under Category, select Configuration and then enable the following options:
- For Configuration scheme, select Active Serial x4(can use Configuration Device).
- For Configuration pin, click Configuration Pin Options and then turn on USE CONF_DONE output and USE CVP_CONFDONE output, assign CONF_DONE output and CVP_CONFDONE output to the SDM IO pin. Click OK.

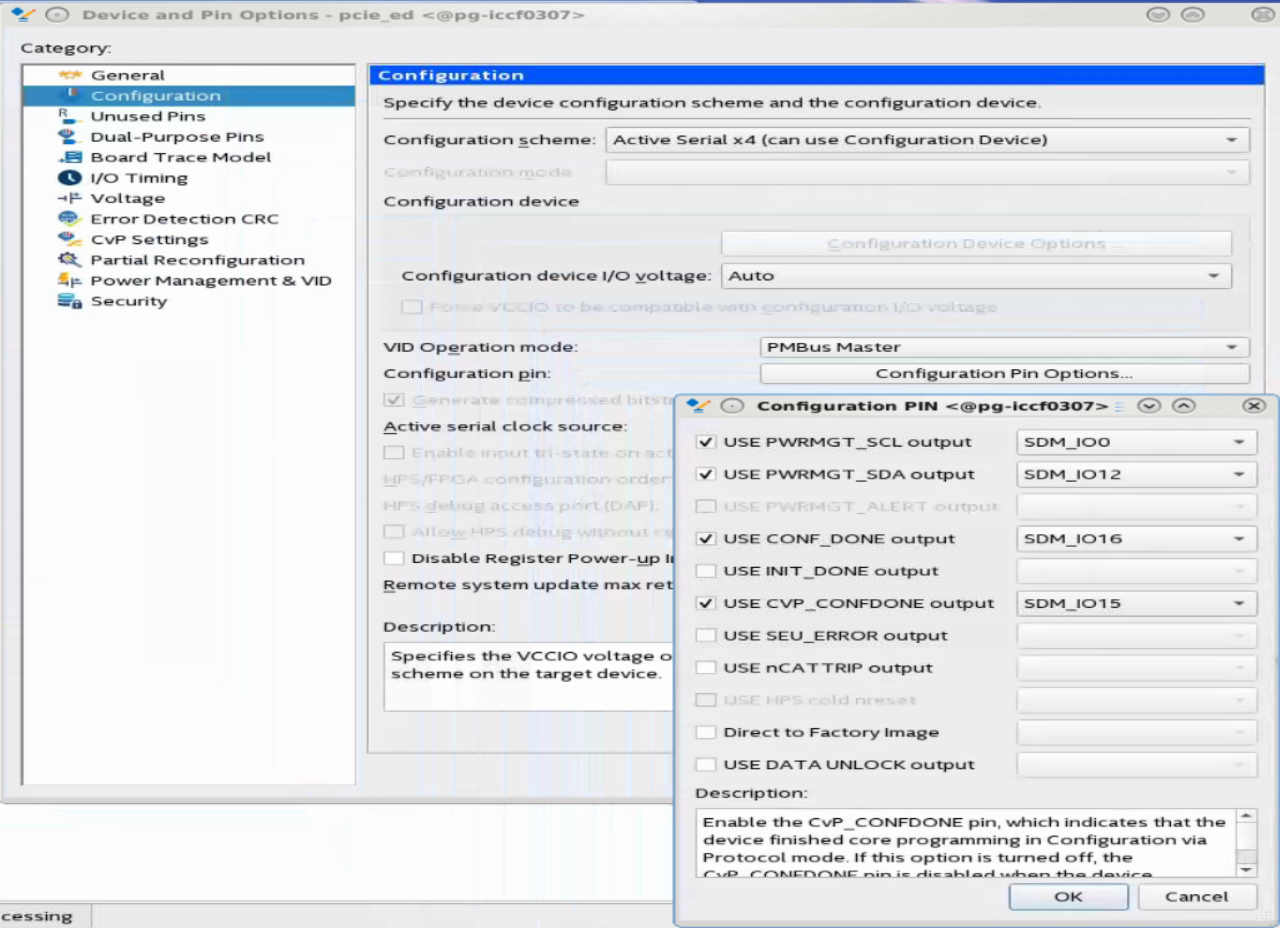

Figure 9. CvP Parameters in Configuration Tab
- Under Category, select CvP Settings to specify CvP settings. For Configuration via Protocol, select Initialization and update option. Click OK.

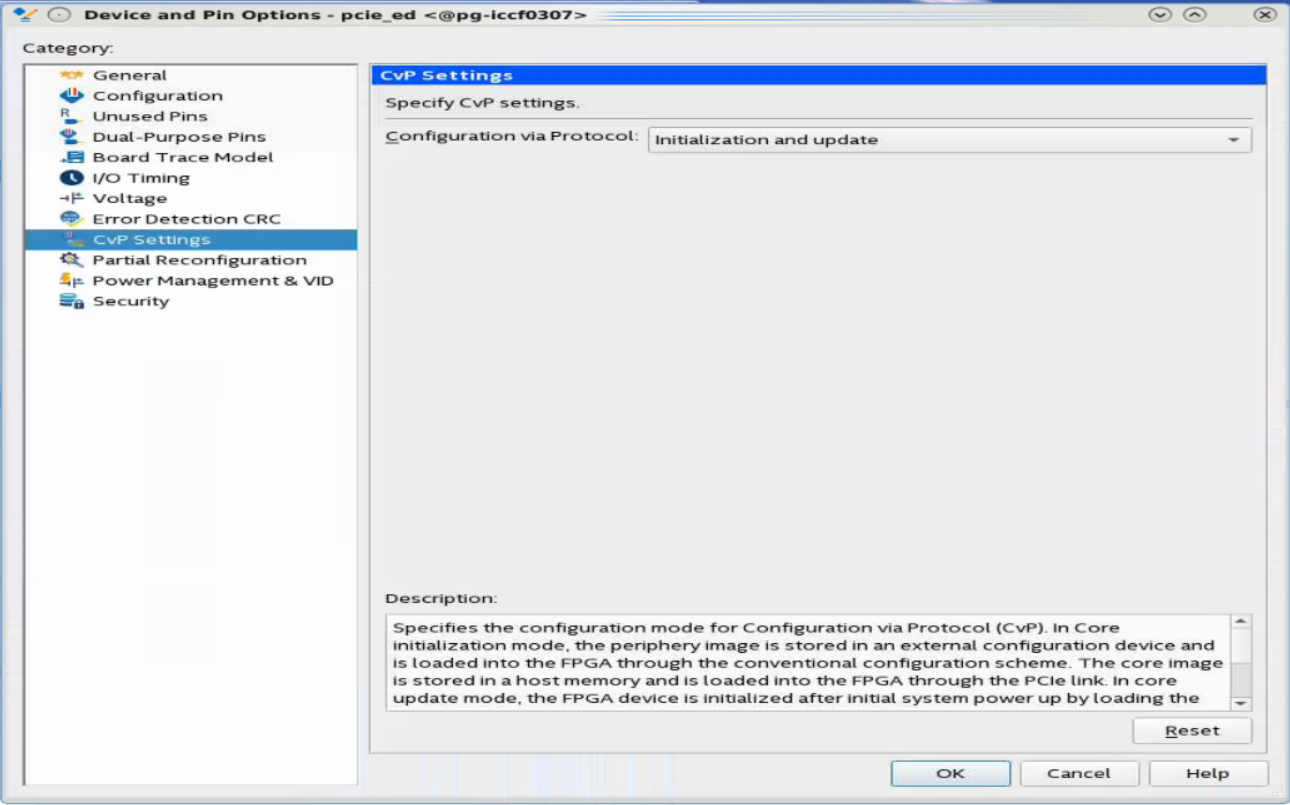

Figure 10. CvP Parameters in CvP Settings Tab
- Click OK.
