If the BAS support is enabled on hardware, enable the following flag in: dpdk/dpdk/drivers/net/mcdma/rte_pmd_mcdma.h
#define PCIe_SLOT 0 /* 0 – x16, 1 – x8 */

Commands:

  1. To verify the write operation:
     ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas -s 512 -t

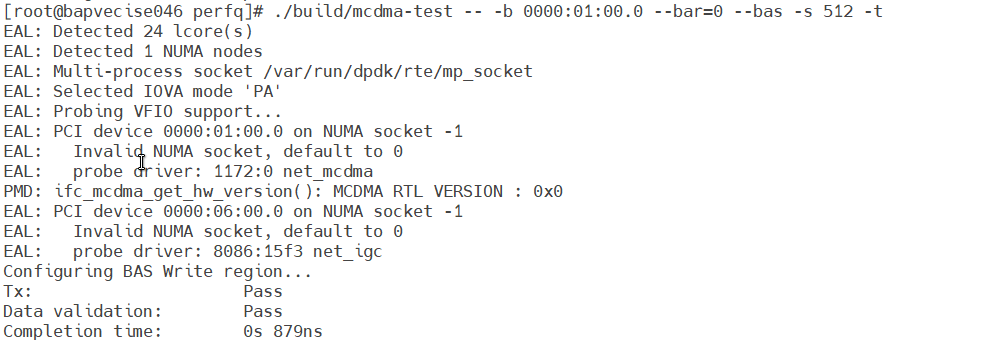

    Figure 37. BAS Write Operation
  2. To verify the read operation:
     ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas -s 512 -r

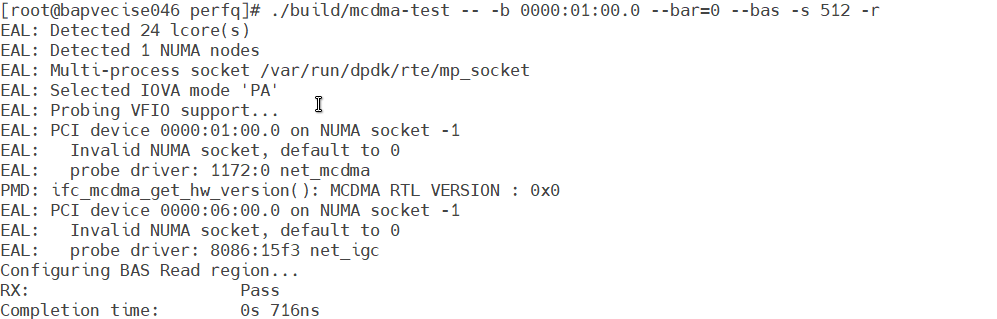

    Figure 38. BAS Read Operation
  3. To verify the write and read operation:
    ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas -s 512 -z

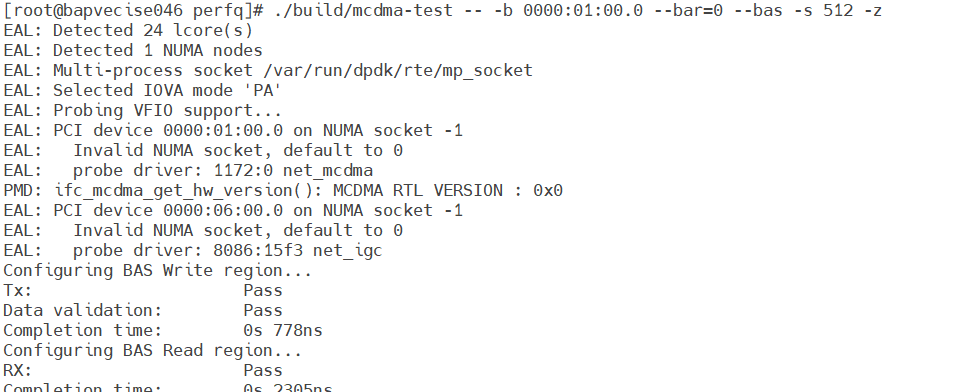

    Figure 39. BAS Write and Read Operation

    Performance test:

    The below log is collected on Gen3x16 H-tile
     ./build/mcdma-test -- -b 0000:01:00.0 --bar=0 --bas_perf -s 16384 -z

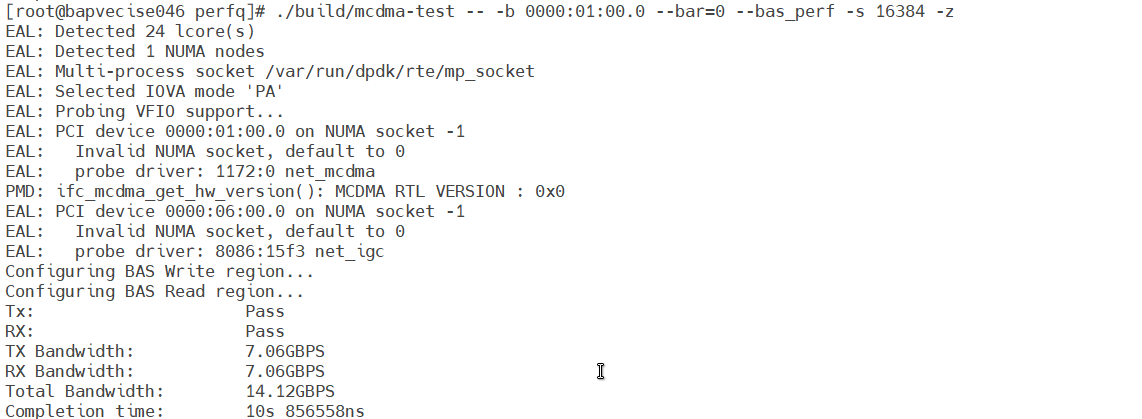

    Figure 40. Performance Test
