2.5.2. Hardware Test Results

The Custom Driver, DPDK Driver, and Kernel Mode Driver were used to generate the following output:
Figure 26. PIO Test-o option

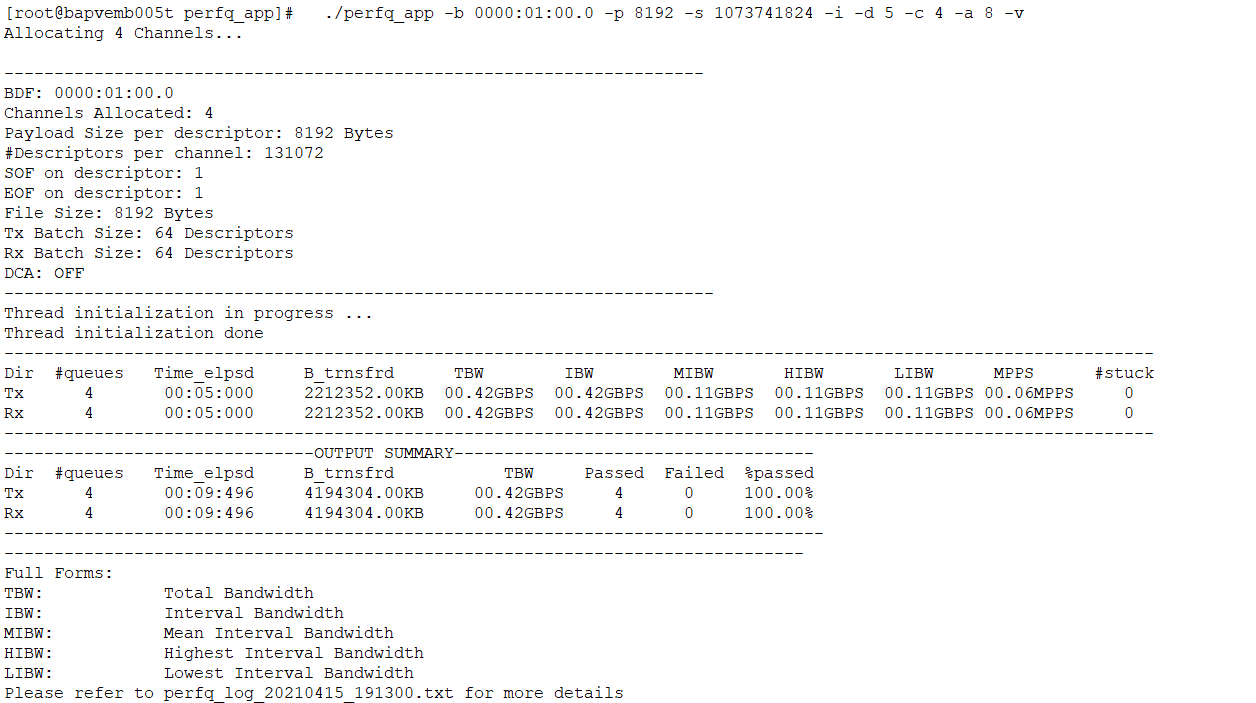

Figure 27. Performance Test-i option. Note: This hardware test was run with the Intel® Stratix® 10 GX H-tile PCIe Gen3 x16 configuration.
Figure 28. Data Validation Test-i with -v option. Note: This hardware test was run with the Intel® Stratix® 10 GX H-tile PCIe Gen3 x16 configuration.
