3.2. Step 2: Creating a Signal Tap File
Create a Signal Tap file that includes partition boundary ports from the reused core partition.
- Click Tools > Signal Tap Logic Analyzer.
- In the Signal Tap logic analyzer GUI, click auto_signaltap_0.
- In the Setup tab, double-click to launch the Node Finder.

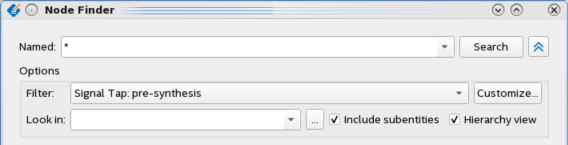

- In the Node Finder, type * in the Named field, set Filter to Signal Tap: pre-synthesis, and then click Search.

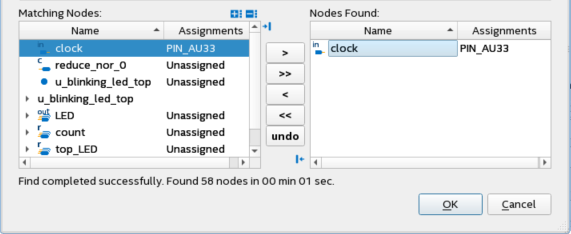

Figure 24. Node Finder SearchThe Matching Nodes list shows signals that match the search criteria.
- Add the boundary ports from the imported partition (db_*) from u_blinking_led_top to the Nodes Found list.
The names must match what appears in the Developer project's report file.
Figure 25. Node FinderNote: If you add nodes other than the db_* nodes from the imported partition, the Compiler leaves them unconnected. - Add nodes count[2:0] from the root partition to the Nodes Found list, and click Insert.
- Configure the Signal Tap acquisition. Refer to Step 6: Creating a Signal Tap File (Optional) for details.
Figure 26. Specifying the Clock Source
- Click File > Save, and save the file as stp_core_partition_reuse.stp.
A dialog box appears asking if you want to enable Signal Tap file for the project.
- Click Yes, and close the file.
