3.1. Intel® FPGA PTC Select Family Dialog Box

When you launch the Intel® FPGA Power and Thermal Calculator ( Intel® FPGA PTC), the first dialog box that appears allows you to select the Intel® FPGA family for your Intel® FPGA PTC design.

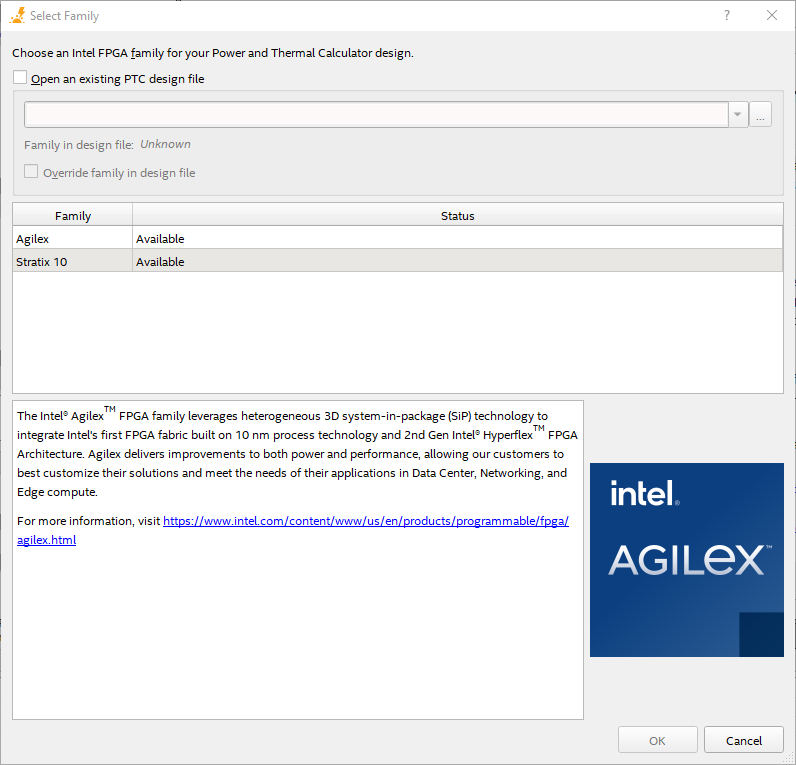

Figure 8. Select Family Dialog Box

To proceed with the Intel® FPGA PTC, select the desired device family, and click OK.

Note:
  1. Once you have selected a device family to model, you cannot change that selection unless you start a new Intel® FPGA PTC instance.
  2. Currently, the Intel® FPGA PTC supports the Intel® Agilex™ and Intel® Stratix® 10 FPGA device families. You will notice some differences on the Intel® FPGA PTC pages, depending on the device family selected.
