3.1. Generating the Synthesis HDL Files for Intel® Cyclone® 10 GX PCI Express IP Core

Follow these steps to generate the synthesis HDL files with CvP enabled:

  1. Open the Intel® Quartus® Prime Pro Edition software.
  2. On the Tools menu, select Platform Designer . The Open System window appears.
  3. For System, click + and specify a File Name to create a new platform designer system. Click Create.
  4. On the System Contents tab, delete the clock_in and reset_in components that appear by default.
  5. In the IP Catalog locate and double-click Arria 10/Cyclone 10 Hard IP for PCI Express. The new window appears.
  6. On the IP Settings tab, specify the parameters and options for your design variation.

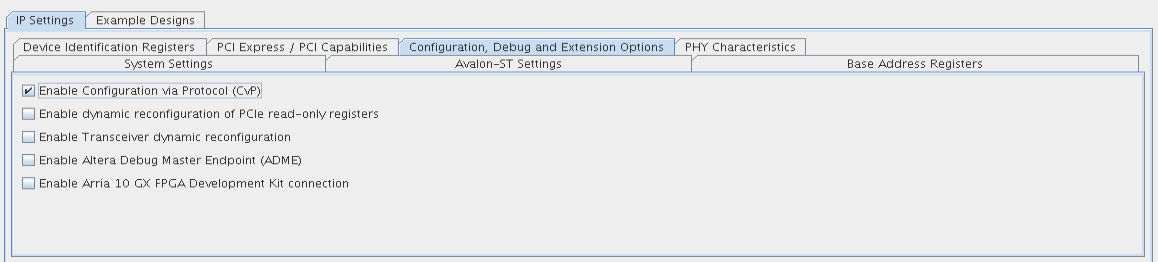

  7. Under Configuration, Debug and Extenstion Options, turn on Enable Configuration via Protocol (CvP) as shown in the following figure:
    Figure 5. Illustrating the specified option in IP Settings Tab
  8. Click Finish.
  9. On the Generation tab, specify your parameters to generate RTL. Then click Generate at the bottom of the window.
