2.5. Power Optimization Advisor

The Quartus® Prime Power Optimization Advisor provides advice and recommendations based on the current design project settings and assignments. You run the Advisor after the Power Analyzer.

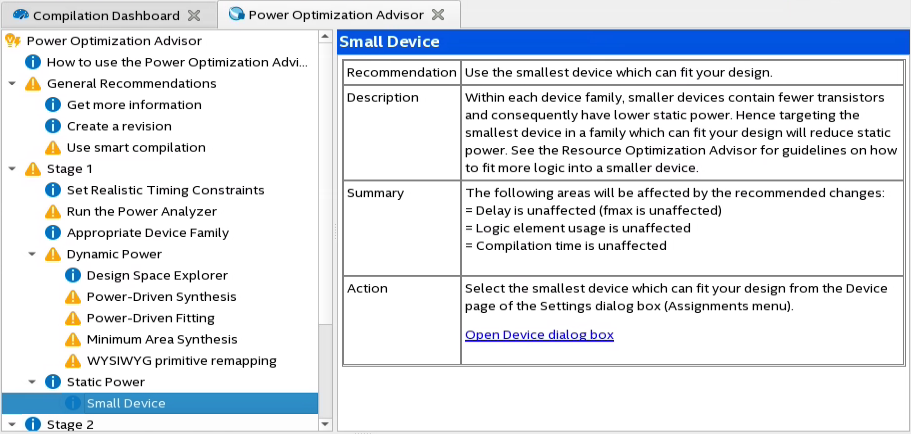

Figure 41. Power Optimization Advisor

The Power Optimization Advisor organizes the recommendations into stages that suggest the implementation order. Each recommendation includes a description, summary of the effect of the recommendation, and the action required to make the appropriate setting.

An icon indicates whether each recommended setting is made in the current project. Checkmark icons appear next to recommendations that are already implemented, warning icons appear next to recommendations that are not followed for this compilation. Information icons indicate general suggestions.

Recommendations include a link to the location in the Quartus® Prime GUI where you can change the setting. After implementing the recommended changes, recompile your design. You can verify power results with the Power Analyzer.


Section Content
Set Realistic Timing Constraints
Appropriate Device Family
Dynamic Power
Static Power
Appropriate I/O Standards
Use RAM Blocks
Shut Down RAM Blocks
Clock Enables on Logic
Pipeline Logic to Reduce Glitching
