2.4.6.1. Implementation

Table 13.  Single-port Embedded Memory Configurations for Arria® 10 DevicesThis table lists the maximum configurations that single-port RAM and ROM modes support.
Memory Block Depth (bits) Programmable Width
MLAB 32 x16, x18, or x20
64 2 x8, x9, x10
M20K 512 x40, x32
1K x20, x16
2K x10, x8
4K x5, x4
8K x2
16K x1

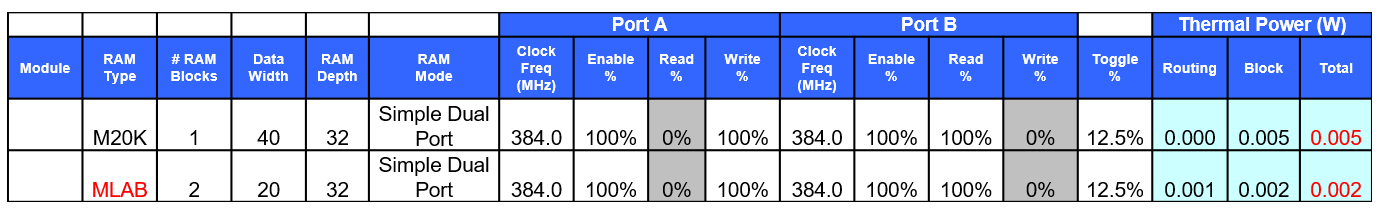

Figure 37. Power numbers from EPE
2 Supported through software emulation and consumes additional MLAB blocks.
