6.2. Core Parameters

Depending on which Hard IP Mode you choose in the Top-Level Settings tab, you will see different tabs for setting the core parameters.

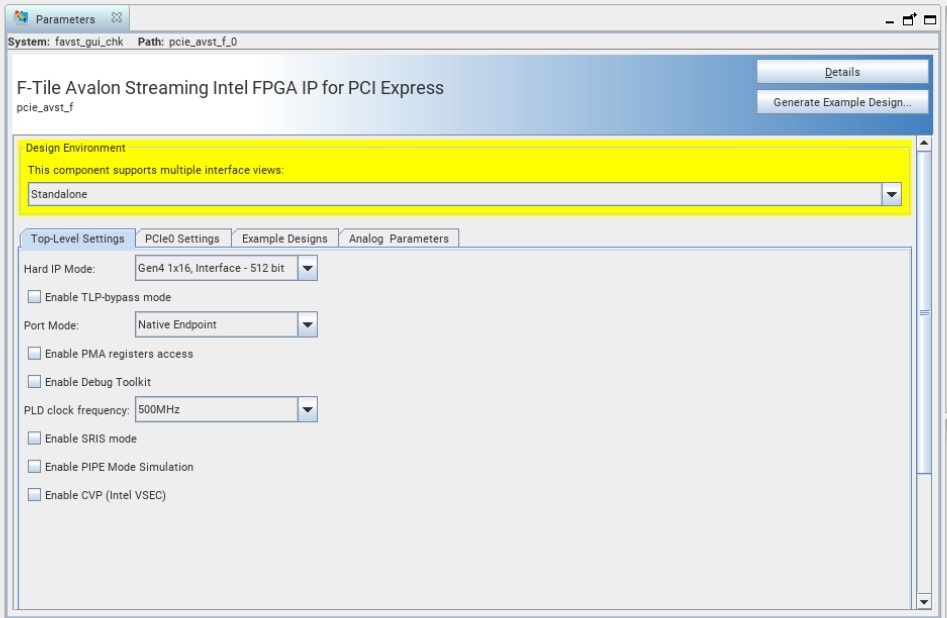

Figure 60. F-Tile Avalon® Streaming Intel FPGA IP Top-Level Parameter Editor for a 1 x16 Hard IP Mode If you choose a 1 x16 mode (either Gen4 or Gen3), only the PCIe0 Settings tab will appear.
Figure 61. F-Tile Avalon® Streaming Intel FPGA IP Top-Level Parameter Editor for a 2 x8 Hard IP ModeIf you choose a 2 x8 mode (either Gen4 or Gen3), the PCIe0 Settings and PCIe1 Settings tabs will appear.
Figure 62. F-Tile Avalon® Streaming Intel FPGA IP Top-Level Parameter Editor for a 4 x4 Hard IP ModeIf you choose a 4 x4 mode (either Gen4 or Gen3), the PCIe0 Settings, PCIe1 Settings, PCIe2 Settings and PCIe3 Settings tabs will appear.

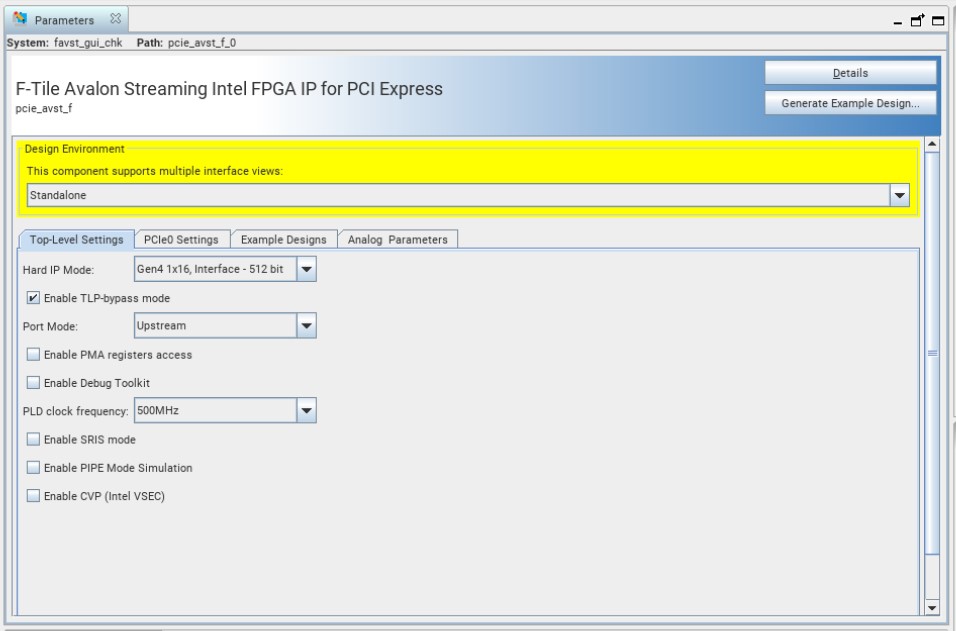

Note: You can enable the TLP Bypass mode in the Top-Level Settings tab of the IP Parameter Editor as shown in the figure below:
Figure 63. Enabling TLP Bypass Mode

Section Content
Avalon Parameters
Base Address Registers
PCI Express and PCI Capabilities Parameters
Device Identification Registers
Configuration, Debug and Extension Options
Analog Options
