Single Program Multiple Data
This section includes concepts and descriptions of objects that support distributed computations using SPMD model.
Distributed computation using SPMD model
In a typical usage scenario, a user provides a communicator object as a first parameter of a free function to indicate that the algorithm can process data simultaneously. All internal inter-process communications at sync points are hidden from the user.
General expectation is that input dataset is distributed among processes. Results are distributed in accordance with the input.

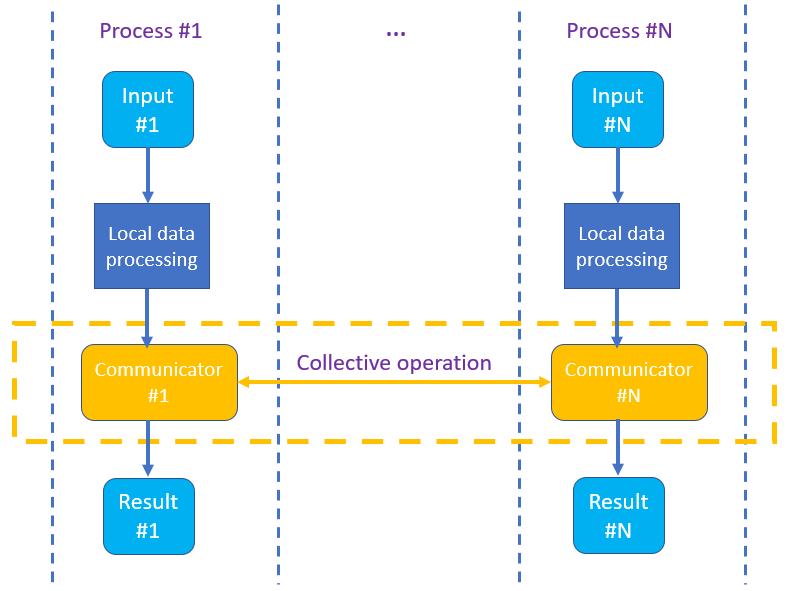

![Typical SPMD flow](/content/dam/docs/us/en/developer-guide-reference/2023-2/6599C7B7-2359-461A-A35A-41B98D7590CC-low.png)
Supported Collective Operations
The following collective operations are supported:
bcast Broadcasts data from specified process.
allreduce Reduces data among all processes.
allgatherv Gathers data from all processes and shares the result among all processes.
sendrecv_replace Sends and receives data using a single buffer.
Backend-specific restrictions
oneCCL: Allgetherv does not support arbitrary displacements. The result is expected to be closely packed without gaps.
oneMPI: Collective operations in oneMPI do not support asynchronous executions. They block the process till completion.
