Distributed Processing

This mode assumes that the data set is split into nblocks blocks across computation nodes.

Parameters

Centroid initialization for K-Means clustering in the distributed processing mode has the following parameters:

Algorithm Parameters for K-Means Initialization (Distributed Processing)
Parameter	Method	Default Valude	Description
`computeStep`	any	Not applicable	The parameter required to initialize the algorithm. Can be: `step1Local` - the first step, performed on local nodes. Applicable for all methods. `step2Master` - the second step, performed on a master node. Applicable for deterministic and random methods only. `step2Local` - the second step, performed on local nodes. Applicable for `plusPlus` and `parallelPlus` methods only. `step3Master` - the third step, performed on a master node. Applicable for `plusPlus` and `ParallelPlus` methods only. `step4Local` - the forth step, performed on local nodes. Applicable for `plusPlus` and `parallelPlus` methods only. `step5Master` - the fifth step, performed on a master node. Applicable for `plusPlus` and `parallelPlus` methods only.
`algorithmFPType`	any	`float`	The floating-point type that the algorithm uses for intermediate computations. Can be `float` or `double`.
`method`	Not applicable	`defaultDense`	Available initialization methods for K-Means clustering: `defaultDense` - uses first nClusters feature vectors as initial centroids `deterministicCSR` - uses first nClusters feature vectors as initial centroids for data in a CSR numeric table `randomDense` - uses random nClusters feature vectors as initial centroids `randomCSR` - uses random nClusters feature vectors as initial centroids for data in a CSR numeric table `plusPlusDense` - uses K-Means++ algorithm [Arthur2007] `plusPlusCSR` - uses K-Means++ algorithm for data in a CSR numeric table `parallelPlusDense` - uses parallel K-Means++ algorithm [Bahmani2012] `parallelPlusCSR` - uses parallel K-Means++ algorithm for data in a CSR numeric table For more details, see the algorithm description.
`nClusters`	any	Not applicable	The number of centroids. Required.
`nRowsTotal`	any	0	The total number of rows in all input data sets on all nodes. Required in the distributed processing mode in the first step.
`offset`	any	Not applicable	Offset in the total data set specifying the start of a block stored on a given local node. Required.
`oversamplingFactor`	`parallelPlusDense` `parallelPlusCSR`	0.5	A fraction of `nClusters` in each of `nRounds` of parallel K-Means++. $L = nClusters * oversamplingFactor$ points are sampled in a round. For details, see [Bahmani2012], section 3.3.
`nRounds`	`parallelPlusDense` `parallelPlusCSR`	5	The number of rounds for parallel K-Means++. $L * nRounds$ must be greater than `nClusters`. For details, see [Bahmani2012], section 3.3.
`firstIteration`	`parallelPlusDense` `parallelPlusCSR` `plusPlusDense` `plusPlusCSR`	`false`	Set to true if `step2Local` is called for the first time.
`outputForStep5Required`	`parallelPlusDense` `parallelPlusCSR`	`false`	Set to true if `step4Local` is called on the last iteration of the Step 2 - Step 4 loop.

Centroid initialization for K-Means clustering follows the general schema described in Algorithms.

plusPlus methods

K-Means Centroid Initialization with plusPlus methods: Distributed Processing

parrallelPlus methods

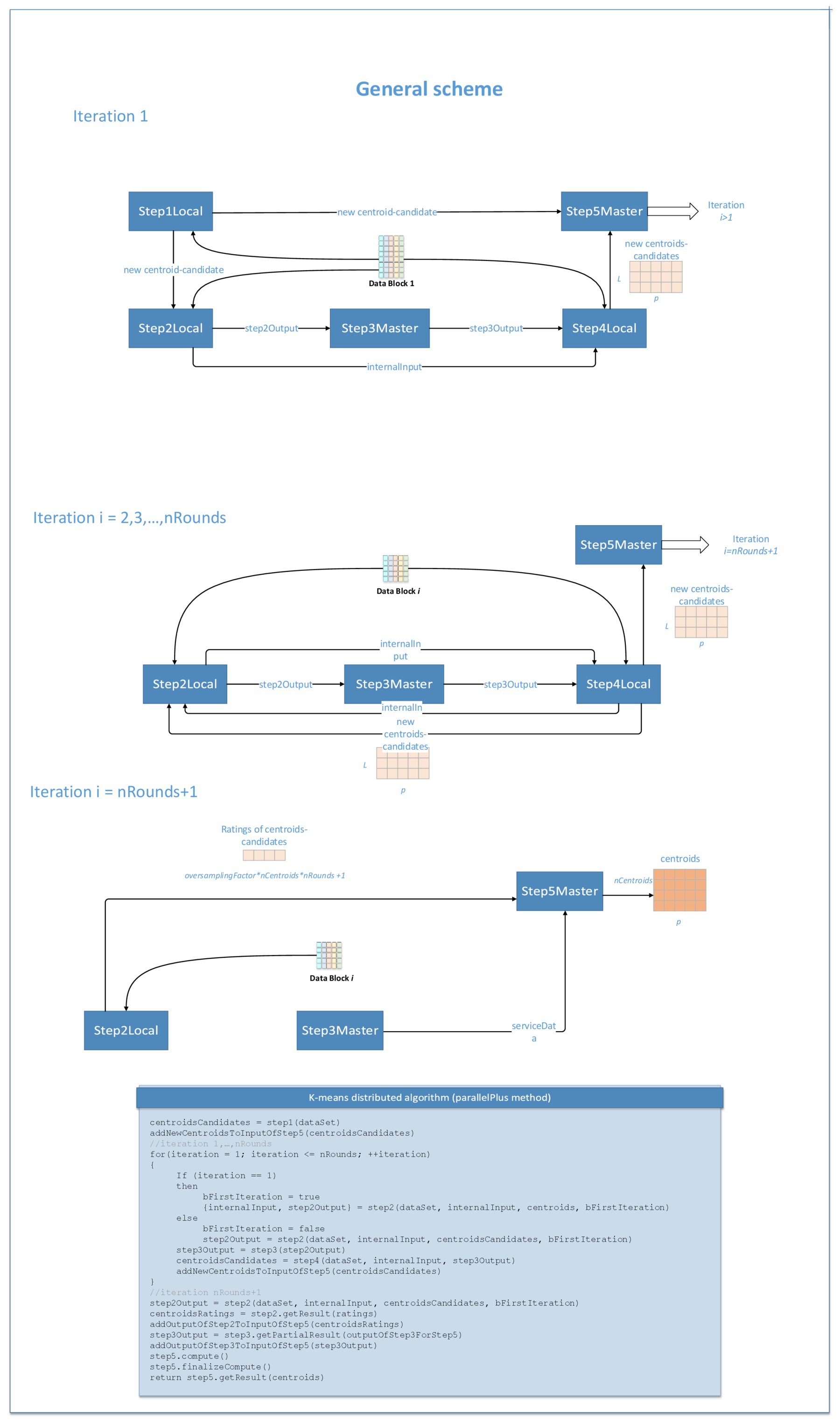

K-Means Centroid Initialization with parrallelPlus methods: Distributed Processing

Step 1 - on Local Nodes (`deterministic`, `random`, `plusPlus`, and `parallelPlus` methods)

plusPlus methods

K-Means Centroid Initialization with plusPlus methods: Distributed Processing, Step 1 - on Local Nodes

parrallelPlus methods

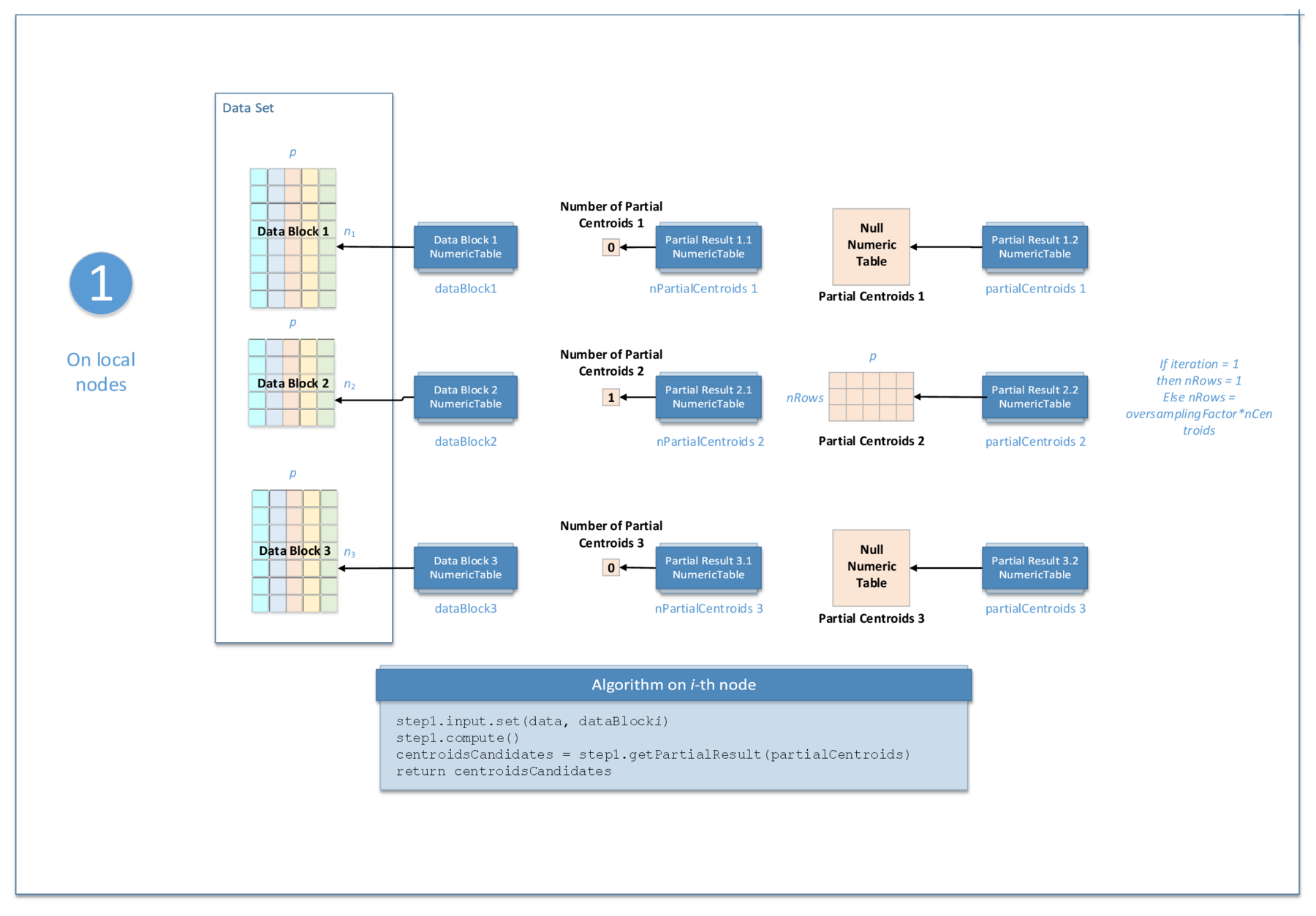

K-Means Centroid Initialization with parrallelPlus methods: Distributed Processing, Step 1 - on Local Nodes

In this step, centroid initialization for K-Means clustering accepts the input described below. Pass the Input ID as a parameter to the methods that provide input for your algorithm. For more details, see Algorithms.

Input for K-Means Initialization (Distributed Processing, Step 1)
Input ID	Input
`data`	Pointer to the $n_{i} \times p$ numeric table that represents the i-th data block on the local node. NOTE: While the input for `defaultDense`, `randomDense`, `plusPlusDense`, and `parallelPlusDense` methods can be an object of any class derived from `NumericTable`, the input for `deterministicCSR`, `randomCSR`, `plusPlusCSR`, and `parallelPlusCSR` methods can only be an object of the `CSRNumericTable` class.

In this step, centroid initialization for K-Means clustering calculates the results described below. Pass the Result ID as a parameter to the methods that access the results of your algorithm. For more details, see Algorithms.

Output for K-Means Initialization (Distributed Processing, Step 1)
Result ID	Result
`partialCentroids`	Pointer to the $nClusters \times p$ numeric table with the centroids computed on the local node. NOTE: By default, this result is an object of the `HomogenNumericTable` class, but you can define the result as an object of any class derived from `NumericTable` except `PackedTriangularMatrix`, `PackedSymmetricMatrix`, and `CSRNumericTable`.

Step 2 - on Master Node (`deterministic` and `random` methods)

This step is applicable for deterministic and random methods only. Centroid initialization for K-Means clustering accepts the input from each local node described below. Pass the Input ID as a parameter to the methods that provide input for your algorithm. For more details, see Algorithms.

Input for K-Means Initialization (Distributed Processing, Step 2 on Master Node)
Input ID	Input
`partialResuts`	A collection that contains results computed in Step 1 on local nodes (two numeric tables from each local node).

Output for K-Means Initialization (Distributed Processing, Step 2 on Master Node)
Result ID	Result
`centroids`	Pointer to the $nClusters \times p$ numeric table with centroids. NOTE: By default, this result is an object of the `HomogenNumericTable` class, but you can define the result as an object of any class derived from `NumericTable` except `PackedTriangularMatrix`, `PackedSymmetricMatrix`, and `CSRNumericTable`.

Step 2 - on Local Nodes (`plusPlus` and `parallelPlus` methods)

plusPlus methods

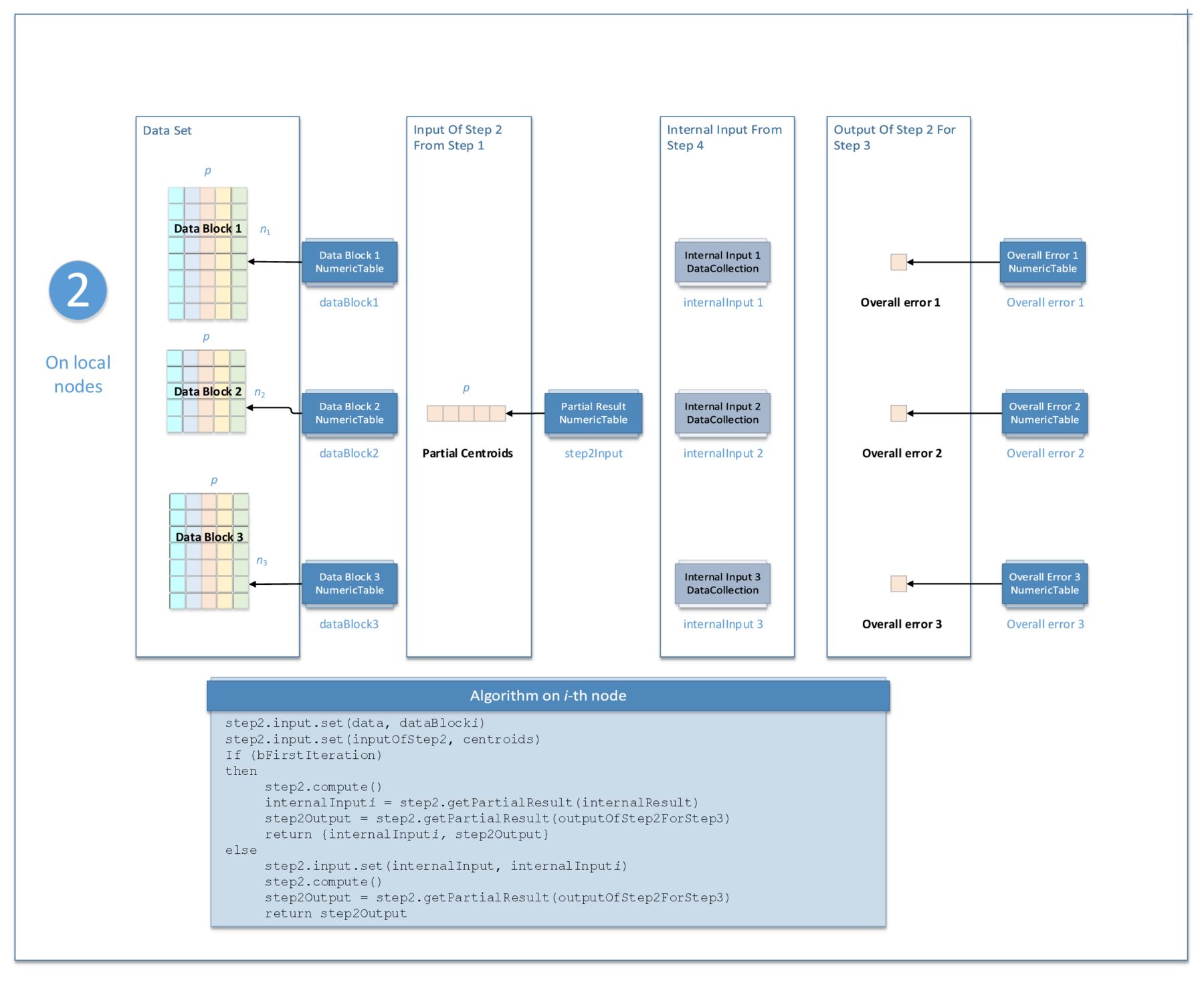

K-Means Centroid Initialization with plusPlus methods: Distributed Processing, Step 2 - on Local Nodes

parrallelPlus methods

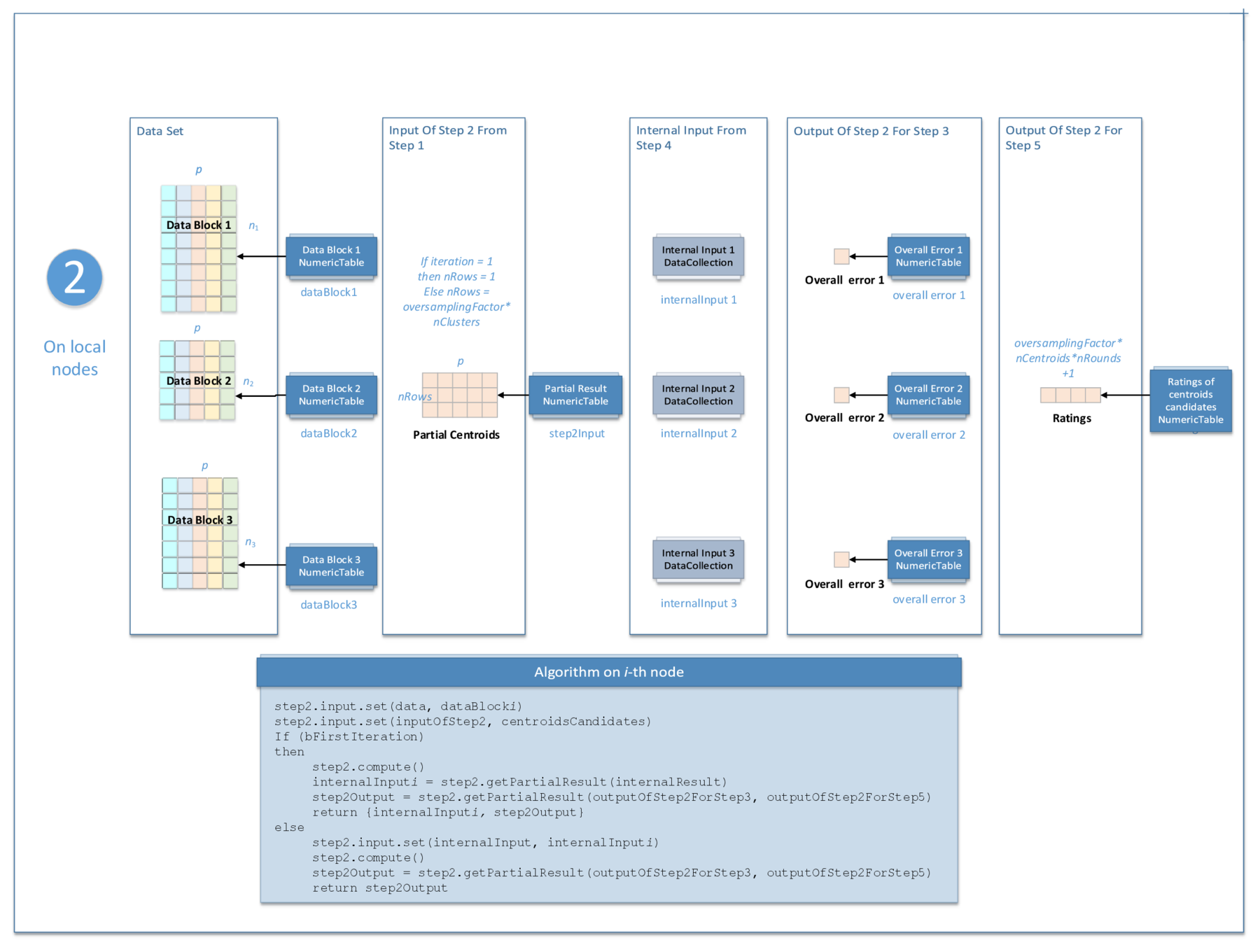

K-Means Centroid Initialization with parrallelPlus methods: Distributed Processing, Step 2 - on Local Nodes

This step is applicable for plusPlus and parallelPlus methods only. Centroid initialization for K-Means clustering accepts the input from each local node described below. Pass the Input ID as a parameter to the methods that provide input for your algorithm. For more details, see Algorithms.

Input for K-Means Initialization (Distributed Processing, Step 1 on Local Nodes)
Input ID	Input
`data`	Pointer to the $n_{i} \times p$ numeric table that represents the i-th data block on the local node. NOTE: While the input for `defaultDense`, `randomDense`, `plusPlusDense`, and `parallelPlusDense` methods can be an object of any class derived from `NumericTable`, the input for `deterministicCSR`, `randomCSR`, `plusPlusCSR`, and `parallelPlusCSR` methods can only be an object of the `CSRNumericTable` class.
`inputOfStep2`	Pointer to the $m \times p$ numeric table with the centroids calculated in the previous steps (Step 1 or Step 4). The value of m is defined by the method and iteration of the algorithm: `plusPlus` method: $m = 1$ `parallelPlus` method: $m = 1$ for the first iteration of the Step 2 - Step 4 loop $m = L = nClusters * oversamplingFactor$ for other iterations This input can be an object of any class derived from `NumericTable`, except `CSRNumericTable`, `PackedTriangularMatrix`, and `PackedSymmetricMatrix`.
`internalInput`	Pointer to the `DataCollection` object with the internal data of the distributed algorithm used by its local nodes in Step 2 and Step 4. The `DataCollection` is created in Step 2 when `firstIteration` is set to `true`, and then the `DataCollection` should be set from the partial result as an input for next local steps (Step 2 and Step 4).

Output for K-Means Initialization (Distributed Processing, Step 2 on Local Nodes)
Result ID	Result
`outputOfStep2ForStep3`	Pointer to the $1 i m e s 1$ numeric table that contains the overall error accumulated on the node. For a description of the overall error, see K-Means Clustering Details.
`outputOfStep2ForStep5`	Applicable for `parallelPlus` methods only and calculated when `outputForStep5Required` is set to `true`. Pointer to the $1 \times m$ numeric table with the ratings of centroid candidates computed on the previous steps and $m = oversamplingFactor * nClusters * nRounds + 1$ . For a description of ratings, see K-Means Clustering Details.

NOTE:

By default, these results are objects of the HomogenNumericTable class, but you can define the result as an object of any class derived from NumericTable except PackedTriangularMatrix, PackedSymmetricMatrix, and CSRNumericTable.

Step 3 - on Master Node (`plusPlus` and `parallelPlus` methods)

plusPlus methods

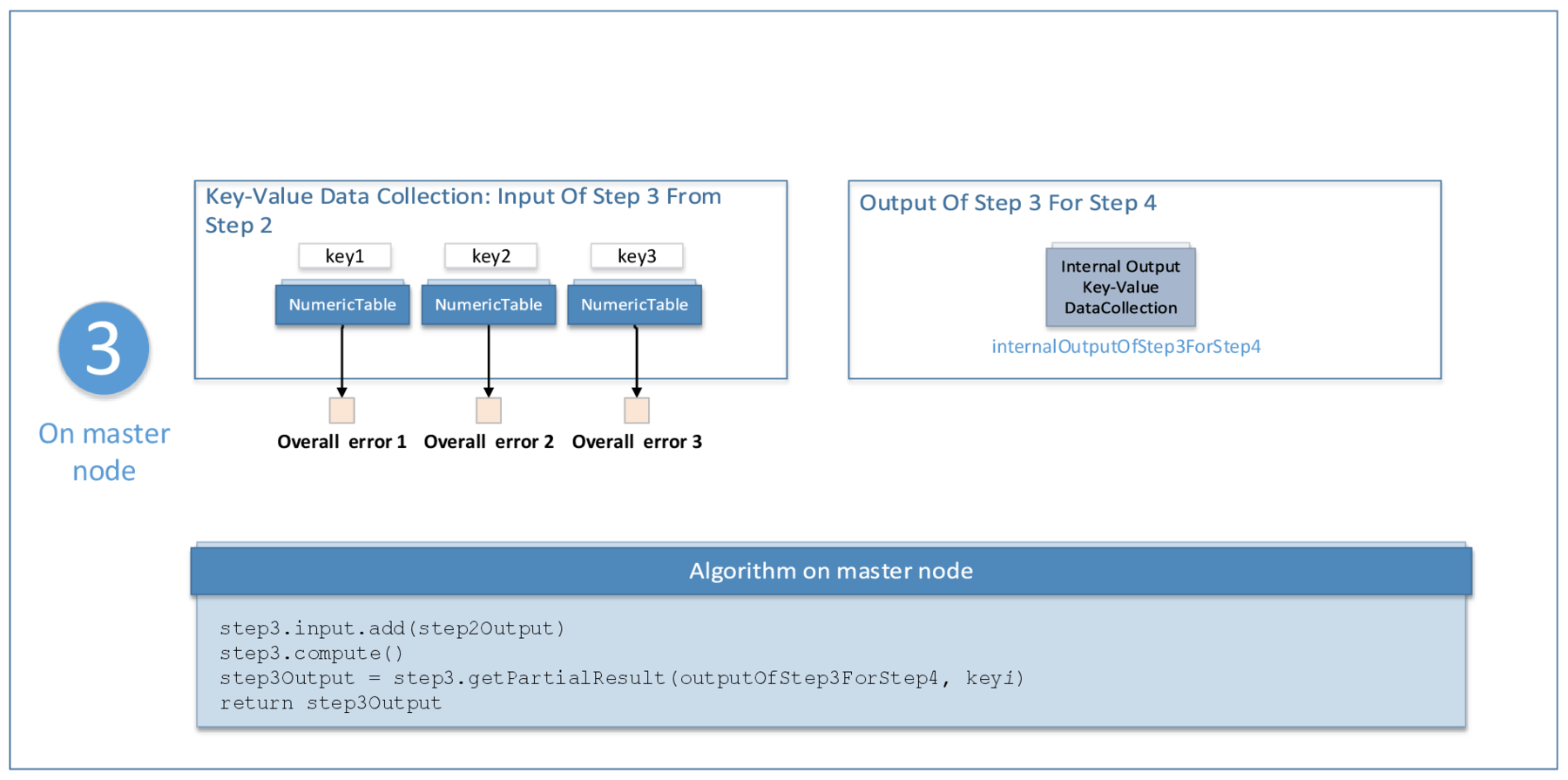

K-Means Centroid Initialization with plusPlus methods: Distributed Processing, Step 3 - on Master Node

parrallelPlus methods

K-Means Centroid Initialization with parrallelPlus methods: Distributed Processing, Step 3 - on Master Node

This step is applicable for plusPlus and parallelPlus methods only. Centroid initialization for K-Means clustering accepts the input from each local node described below. Pass the Input ID as a parameter to the methods that provide input for your algorithm. For more details, see Algorithms.

Input for K-Means Initialization (Distributed Processing, Step 3)
Input ID	Input
`inputOfStep3FromStep2`	A key-value data collection that maps parts of the accumulated error to the local nodes: i-th element of this collection is a numeric table that contains overall error accumulated on the i-th node.

Output for K-Means Initialization (Distributed Processing, Step 3)
Result ID	Result
`outputOfStep3ForStep4`	A key-value data collection that maps the input from Step 4 to local nodes: i-th element of this collection is a numeric table that contains the input from Step 4 on the i-th node. Note that Step 3 may produce no input for Step 4 on some local nodes, which means the collection may not contain the i-th node entry. The single element of this numeric table $v \leq Φ_{X} (C)$ , where the overall error $Φ_{X} (C)$ calculated on the node. For a description of the overall error, see K-Means Clustering Details. This value defines the probability to sample a new centroid on the i-th node.
`outputOfStep3ForStep5`	Applicable for parallelPlus methods only. Pointer to the service data to be used in Step 5.

Step 4 - on Local Nodes (`plusPlus` and `parallelPlus` methods)

plusPlus methods

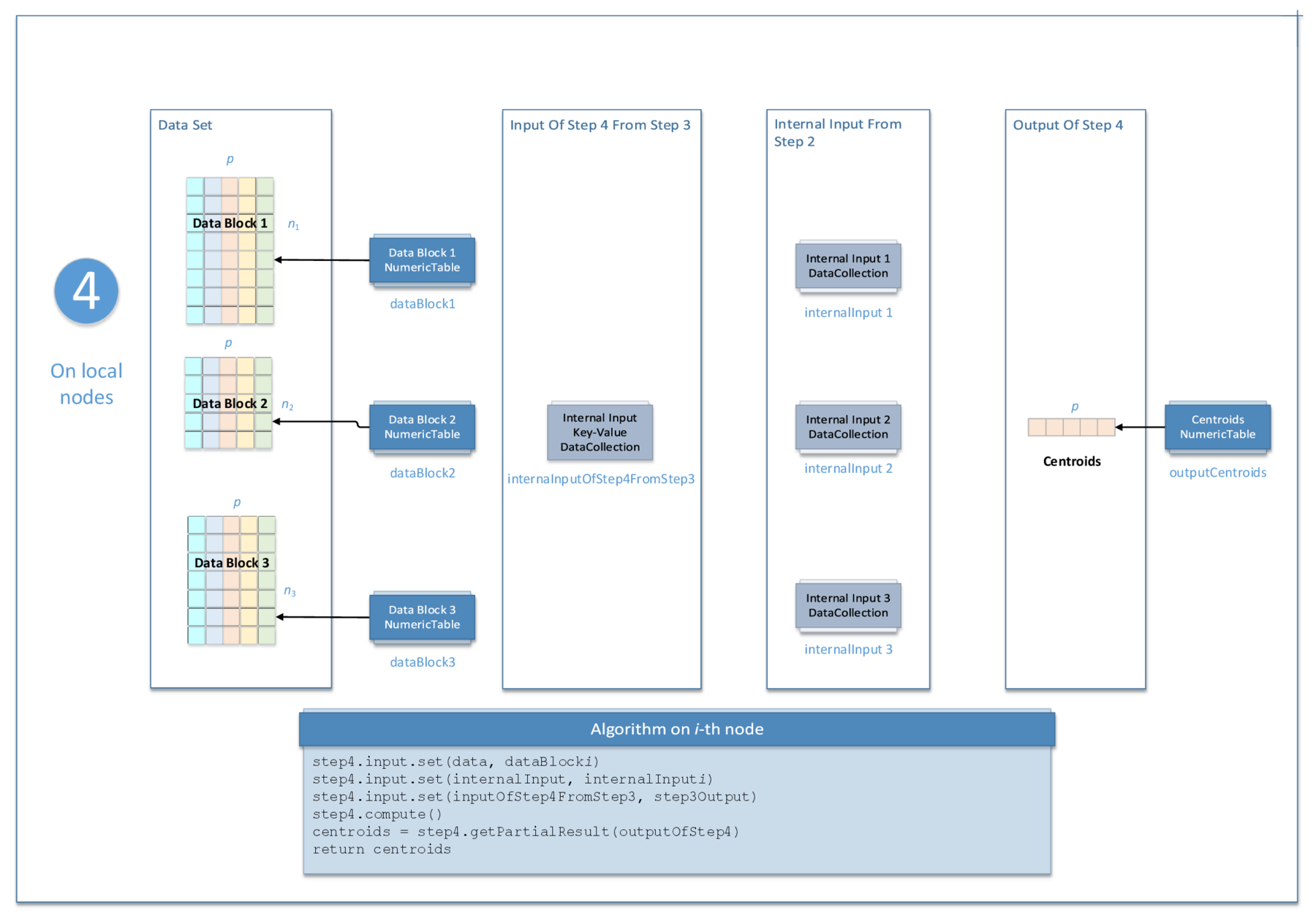

K-Means Centroid Initialization with plusPlus methods: Distributed Processing, Step 4 - on Local Nodes

parrallelPlus methods

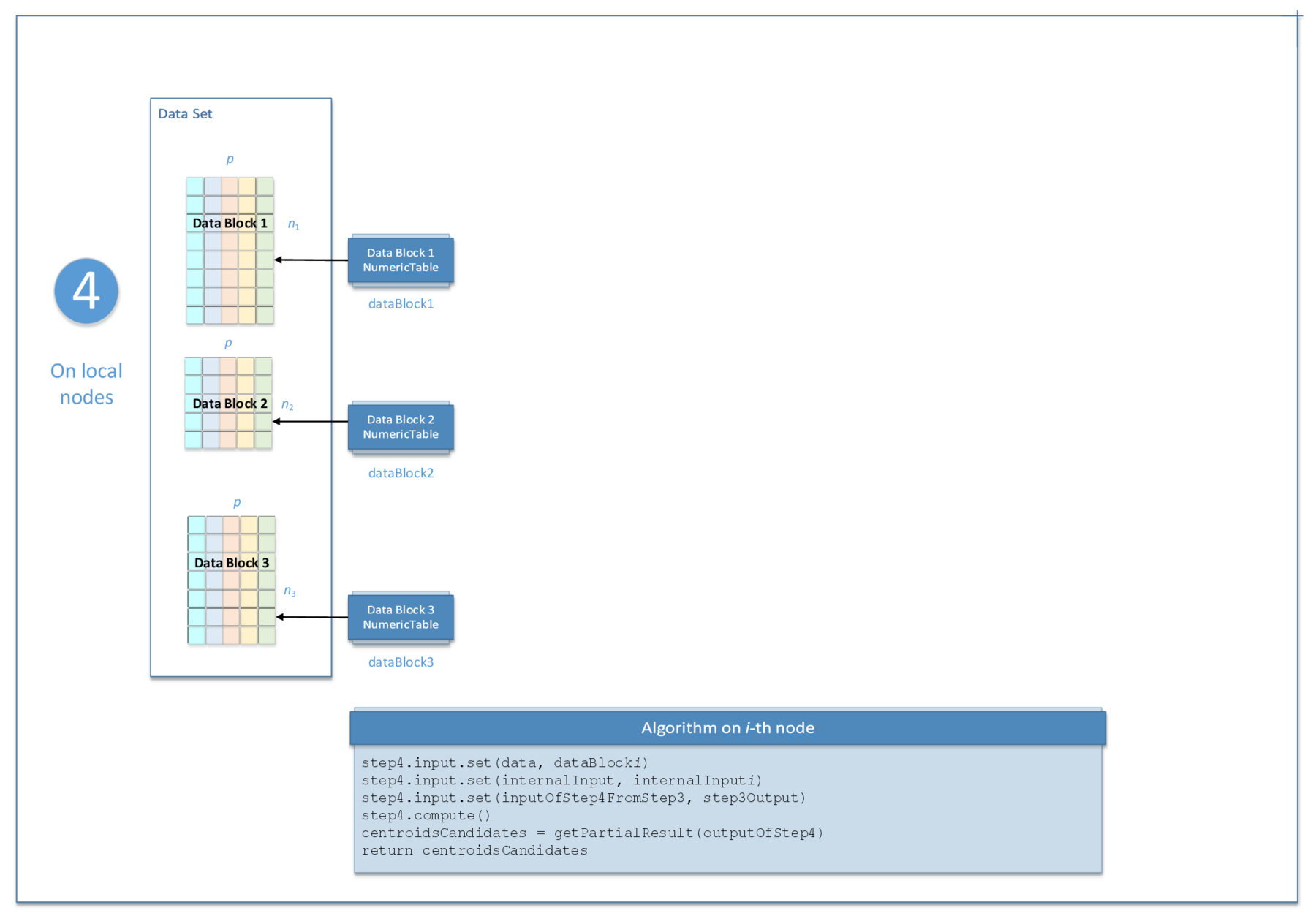

K-Means Centroid Initialization with parrallelPlus methods: Distributed Processing, Step 4 - on Local Nodes

Input for K-Means Initialization (Distributed Processing, Step 4)
Input ID	Input
`data`	Pointer to the $n_{i} \times p$ numeric table that represents the i-th data block on the local node. NOTE: While the input for `defaultDense`, `randomDense`, `plusPlusDense`, and `parallelPlusDense` methods can be an object of any class derived from `NumericTable`, the input for `deterministicCSR`, `randomCSR`, `plusPlusCSR`, and `parallelPlusCSR` methods can only be an object of the `CSRNumericTable` class.
`inputOfStep4FromStep3`	Pointer to the $l \times m$ numeric table with the values calculated in Step 3. The value of m is defined by the method of the algorithm: `plusPlus` method: $m = 1$ `parallelPlus` method: $m \leq L$ , $L = nClusters * oversamplingFactor$ This input can be an object of any class derived from `NumericTable`, except `CSRNumericTable`, `PackedTriangularMatrix`, and `PackedSymmetricMatrix`.
`internalInput`	Pointer to the `DataCollection` object with the internal data of the distributed algorithm used by its local nodes in Step 2 and Step 4. The `DataCollection` is created in Step 2 when `firstIteration` is set to `true`, and then the `DataCollection` should be set from the partial result as the input for next local steps (Step 2 and Step 4).

Output for K-Means Initialization (Distributed Processing, Step 4)
Result ID	Result
`outputOfStep4`	Pointer to the $m \times p$ numeric table that contains centroids computed on this local node, where m equals to the one in `inputOfStep4FromStep3`. NOTE: By default, this result is an object of the `HomogenNumericTable` class, but you can define the result as an object of any class derived from `NumericTable` except `CSRNumericTable`, `PackedTriangularMatrix`, and `PackedSymmetricMatrix`.

Step 5 - on Master Node (`parallelPlus` methods)

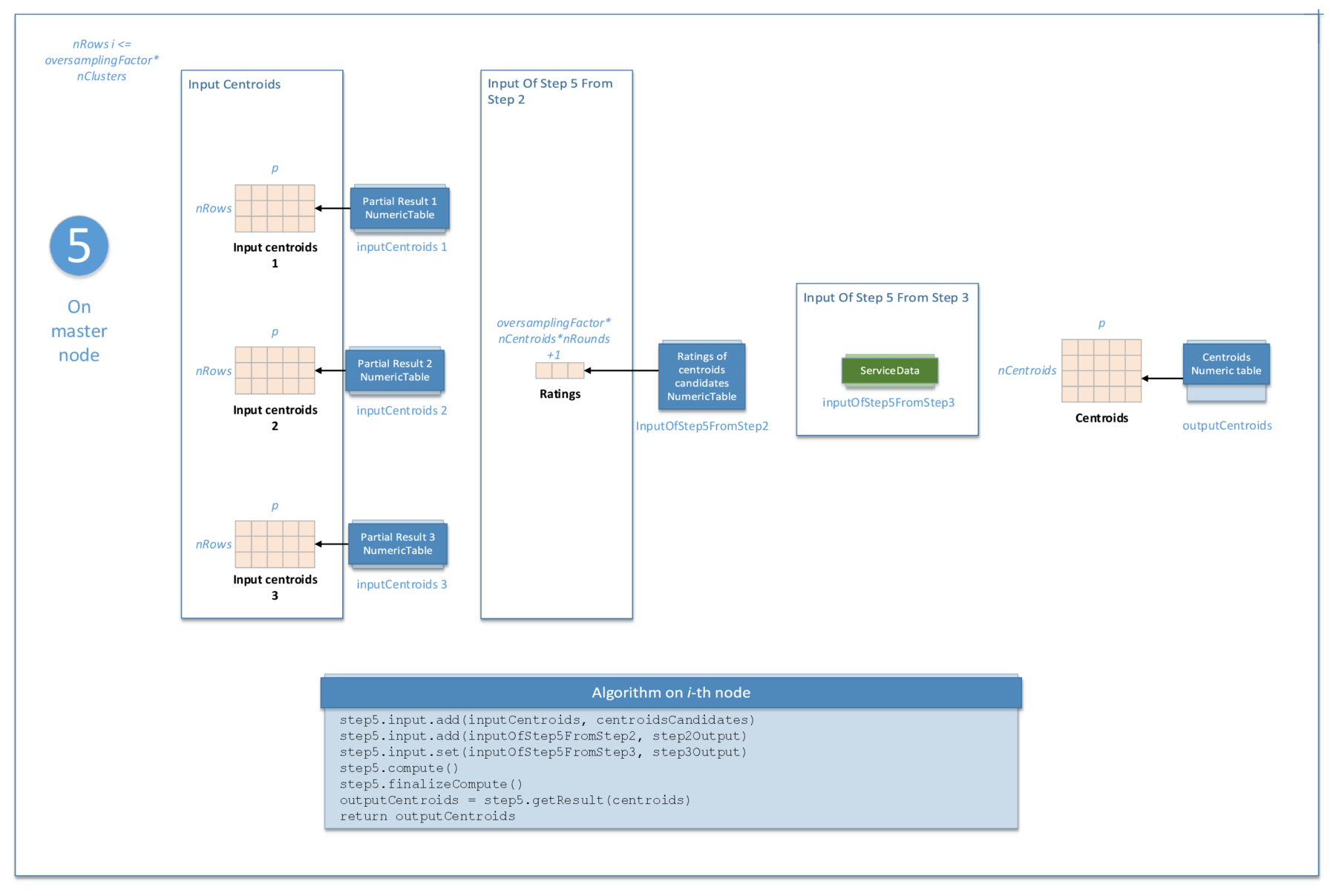

K-Means Centroid Initialization with parrallelPlus methods: Distributed Processing, Step 5 - on Master Node

This step is applicable for parallelPlus methods only. Centroid initialization for K-Means clustering accepts the input from each local node described below. Pass the Input ID as a parameter to the methods that provide input for your algorithm. For more details, see Algorithms.

Input for K-Means Initialization (Distributed Processing, Step 5)
Input ID	Input
inputCentroids	A data collection with the centroids calculated in Step 1 or Step 4. Each item in the collection is the pointer to $m \times p$ numeric table, where the value of m is defined by the method and the iteration of the algorithm: `parallelPlus` method: $m = 1$ for the data added as the output of Step 1 $m \leq L$ , $L = nClusters * oversamplingFactor$ for the data added as the output of Step 4 Each numeric table can be an object of any class derived from `NumericTable`, except `CSRNumericTable`, `PackedTriangularMatrix`, and `PackedSymmetricMatrix`.
`inputOfStep5FromStep2`	A data collection with the items calculated in Step 2 on local nodes. For a detailed definition, see `outputOfStep2ForStep5` above.
`inputOfStep5FromStep3`	Pointer to the service data generated as the output of Step 3 on master node. For a detailed definition, see `outputOfStep3ForStep5` above.

Output for K-Means Initialization (Distributed Processing, Step 5)
Result ID	Result
`centroids`	Pointer to the $nClusters \times p$ numeric table with centroids. NOTE: By default, this result is an object of the `HomogenNumericTable` class, but you can define the result as an object of any class derived from `NumericTable` except `PackedTriangularMatrix`, `PackedSymmetricMatrix`, and `CSRNumericTable`.
