Set oneAPI Environment Variables on the Remote Host

In order to perform development on your remote Linux target, you must install an Intel oneAPI Toolkit and configure the oneAPI development environment variables on the remote Linux target.

1. Log in to your remote Linux target using ssh and install the Intel oneAPI Toolkit onto that target system.

2. Configure your remote Linux target so that the oneAPI development environment script (setvars.sh | oneapi-vars.sh) runs when VS Code initiates a remote connection.

   NOTE:

   Visual Studio Code does not currently provide a mechanism to automatically run scripts on your remote Linux target when it “remotes into” your target system (for example, running setvars.sh | oneapi-vars.sh remotely). There are a variety of ways to get around this issue, only one of which is presented here. See the Bash Startup Files man page for more options.

When connecting to a system via SSH, there is no obvious opportunity to source either the oneAPI setvars.sh or oneapi-vars.sh environment setup scripts before the remote VSCode backend is started. It is best to source the oneAPI environment setup script first, and then start VSCode from that shell. This way, VSCode will inherit the PATH, CPATH, LD_LIBRARY_PATH and other environment variables that are needed to support development tasks.

You can source the oneAPI environment setup scripts in a VSCode terminal, from which you can then run your build scripts (cmake, make, etc.). But the environment variables defined in that shell are not seen by the VSCode backend, which means extensions that need those environment variables will not find them.

One way to resolve this problem is to add the following shell script lines to your remote Linux system’s /etc/profile script (~/.profile or ~/.bash_profile or ~/.zprofile):

if [ -z "${SSH_TTY}" ] && [ -n "$SSH_CLIENT" ] ; then
   if [ -e "$HOME/vscode-remote-ssh-env-setup.sh" ] ; then
      . "$HOME/vscode-remote-ssh-env-setup.sh" 1>/dev/null 2>&1 ;
   fi
fi

Then add a script named vscode-remote-ssh-env-setup.sh (as named in the above) to your remote system’s home directory, containing something like the following:

if [ -e "$HOME/intel/oneapi/setvars.sh" ] ; then
   . "$HOME/intel/oneapi/setvars.sh" ;
elif [ -e /opt/intel/oneapi/setvars.sh  ] ; then
   . "/opt/intel/oneapi/setvars.sh" ;
fi

The net result sources the oneAPI setvars.sh script prior to starting the remote VSCode backend. The VSCode backend and extensions will then inherit the oneAPI environment variables defined by the vscode-remote-ssh-env-setup.sh script.

It is important to note that the VSCode backend server continues to run after you close the Remote-SSH connection. Therefore, the VSCode backend will not see any changes you make to the vscode-remote-ssh-env-setup.sh script unless the remote VSCode backend is forced to exit.

The Remote-SSH extension provides a command to kill the remote VSCode backend. Open the Command Palette and search for the Remote-SSH: Kill VS Code Server on Host... command. You must first close the Remote-SSH connection (search for Close Remote Connection) before you can kill the remote backend. Alternatively, you can ssh into the remote system from a non-VSCode terminal session and kill the vscode-server or node processes.

Configure Visual Studio Code on Your Local Host

You must install the VS Code “remote ssh” extension into your local copy of VS Code. This extension facilitates development on your remote Linux target.

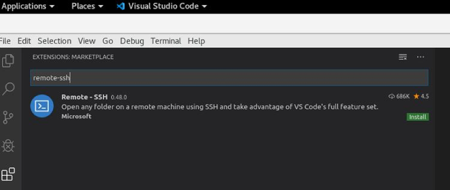

1. Install the Remote - SSH extension by Microsoft. Click the Extensions icon and search for “Remote-SSH” in the search bar.



2. Click install. After installation, you see Remote – SSH in the Installed Extensions list.



Connect to Your Remote Linux Target

See the Visual Studio Code Remote Development using SSH documentation for detailed instructions, requirements, and additional information.

1. Click the remote-ssh icon located in the lower left corner of your VS Code window. A remote-ssh commands palette appears near the top of the VS Code window. Select Remote-SSH: Connect to Host in that command palette.



   NOTE:

   The first connection to your remote Linux target may require a minute or longer to download and install the necessary VS Code backend tools to your remote system. Subsequent connections to the remote system are generally faster. VS Code will indicate the installation process in the lower-right corner of your VS Code window.

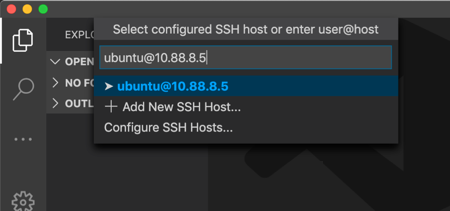

2. Enter the username and an IP address or valid hostname for your remote Linux target, using the same format you would use for an SSH connection into that system, and then press Enter. In the image below, the username is ubuntu.

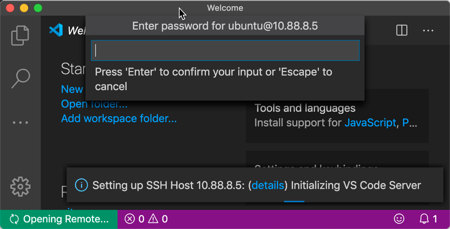

3. A new VS Code window opens and is connected to the remote host. If you do not have an SSH key-pair set up for this connection, you will be prompted to enter a password for your remote Linux target.



   NOTE:

   If you see errors about bad SSH file permissions when connecting, see fixing SSH file permission errors. If your connection is hanging, you may need to enable TCP forwarding or respond to a server prompt. See Tips and Tricks for details.

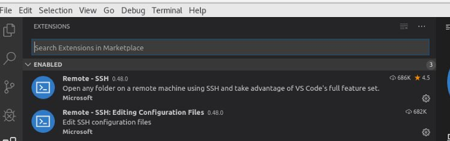

4. Once logged in, add the C/C++ extension to your remote VS Code instance. This extension is required to debug a remote session using the VS Code debug interface.

Explore Samples Using Visual Studio Code*

Before working with oneAPI samples, it is recommended that you install the VS Code “Sample Browser for Intel oneAPI Toolkits” extension and the VS Code “Environment Configurator for Intel® Software Development Tools” extension.

Both can be quickly found in the VS Code extensions marketplace by typing “oneapi” into the marketplace search bar.

The steps below describe how to use these extensions to configure the oneAPI development environment for use with VS Code and use the Sample Browser to locate and create sample projects that help you learn how to use oneAPI features.

To configure the oneAPI environment in VS Code:

1. PressCtrl+Shift+P ( or View -> Command Palette… ) to open the Command Palette.

2. Type Intel oneAPI to view options of the installed extensions.

3. Click on Intel oneAPI: Initialize environment variables.

4. Locate the setvars.sh | oneapi-vars.sh file:

   • Linux: By default in the Component Directory Layout, setvars.sh is located in /opt/intel/oneapi/ for root or sudo installations, or located in ~/intel/oneapi/ for local user installations.

   • Linux: By default in the Unified Directory Layout, oneapi-vars.sh is located in /opt/intel/oneapi/<toolkit-version>/ for root or sudo installations, or located in ~/intel/oneapi/ for local user installations.

   • Windows: By default in the Component Directory Layout, setvars.bat is located in C:\Program Files(x86)\Intel\oneAPI\

   • Windows: By default in the Unified Directory Layout, oneapi-vars.bat is located in C:\Program Files(x86)\Intel\oneAPI\<toolkit-version>\

If you customized the installation folder, setvars.sh | oneapi-vars.sh is in your custom folder.

1. In the case of multiple folders in workspace, select the appropriate one. All tasks, launches, and terminals created from VS Code will now contain the oneAPI environment.

To browse oneAPI samples using VS Code:

1. Click on the oneAPI button on the left navigation to view samples. If you do not have the extension installed, search the Extensions Marketplace for “Sample Browser for Intel oneAPI”.



2. A list of available samples will open in the left navigation.



3. To view the readme for the sample, click the next to the sample. If you choose to build and run the sample, the readme will also be downloaded with the sample.

4. To build and run a sample, click the to the right of the sample name.

5. Create a new folder for the sample. The sample will load in a new window:



6. Click README.md to view instructions for the sample.

Try Debugging (CPU and GPU Only)

The GDB with GPU Debug Support for Intel® oneAPI Toolkits extension for Visual Studio Code (VS Code) enables additional features of GPU debugging with GDB for Intel® oneAPI toolkits. Note that this feature is only available for the Linux* target platform. Start using this VS Code extension with guide Get Started with Intel® Distribution for GDB* on Linux* OS Host.

This section assumes that you can build your sample and have installed the Microsoft VS Code C/C++ Extension. The C/C++ extension is required to configure the oneAPI C/C++ debugger.

The Intel® oneAPI Base Toolkit includes a special version of GNU* GDB (gdb-oneapi) designed to support oneAPI C/C++ applications. To debug your DPC++ application using this special debugger, you will need to make changes to the .vscode/launch.json configuration file. The launch.json defines debug configurations to integrate with the gdb-oneapi application debugger. This launch.json file is configured to work with the array-transform example application. It provides two configurations named CPU array-transform and GPU array-transform.

1. Go to Debug > Open Configurations, and open the launch.json configuration settings.

   NOTE:

   If you are prompted to select a debug environment, choose C++ (GDB/LLDB).



2. Copy the code shown below into your launch.json file, and replace the "program": property’s value with the path to your project’s executable (that is, the application that you are going to debug).

   {
      "version": "0.2.0",
      "configurations": [
         {
            "name": "CPU array-transform",
            "miDebuggerPath": "gdb-oneapi",
            "MIMode": "gdb",
            "type": "cppdbg",
            "request": "launch",
            "preLaunchTask": "",
            "postDebugTask": "",
            "stopAtEntry": true,
            "program": "${workspaceFolder}/build/array-transform",
            "cwd": "${workspaceFolder}/build",
            "args": [],
            "environment": [
               {
                  "name": "ZET_ENABLE_PROGRAM_DEBUGGING",
                  "value": "1"
               },
               {
                  "name": "ONEAPI_DEVICE_SELECTOR",
                  "value": "opencl:cpu"
               }
            ],
            "externalConsole": false,
            "setupCommands": [
               {
                  "description": "Disable MI-async (required setting)",
                  "text": "set mi-async off",
                  "ignoreFailures": true
               },
               {
                  "description": "Enable auto-load for all paths",
                  "text": "set auto-load safe-path /",
                  "ignoreFailures": true
               },
               {
                  "description": "Enable pretty-printing for gdb",
                  "text": "set print pretty on",
                  "ignoreFailures": true
               },
               {
                  "description": "Set Disassembly Flavor to Intel",
                  "text": "set disassembly intel",
                  "ignoreFailures": true
               },
               {
                  "description": "Do not display function arguments when printing a stack frame",
                  "text": "set print frame-arguments none",
                  "ignoreFailures": true
               }
            ]
         },
         {
            "name": "GPU array-transform",
            "miDebuggerPath": "gdb-oneapi",
            "MIMode": "gdb",
            "type": "cppdbg",
            "request": "launch",
            "preLaunchTask": "",
            "postDebugTask": "",
            "stopAtEntry": true,
            "program": "${workspaceFolder}/build/array-transform",
            "cwd": "${workspaceFolder}/build",
            "args": [],
            "environment": [
               {
                  "name": "ZET_ENABLE_PROGRAM_DEBUGGING",
                  "value": "1"
               },
               {
                  "name": "ONEAPI_DEVICE_SELECTOR",
                  "value": "level_zero:gpu"
               }
            ],
            "externalConsole": false,
            "setupCommands": [
               {
                  "description": "Disable MI-async (required setting)",
                  "text": "set mi-async off",
                  "ignoreFailures": true
               },
               {
                  "description": "Enable auto-load for all paths",
                  "text": "set auto-load safe-path /",
                  "ignoreFailures": true
               },
               {
                  "description": "Enable pretty-printing for gdb",
                  "text": "set print pretty on",
                  "ignoreFailures": true
               },
               {
                  "description": "Set Disassembly Flavor to Intel",
                  "text": "set disassembly intel",
                  "ignoreFailures": true
               },
               {
                  "description": "Do not display function arguments when printing a stack frame",
                  "text": "set print frame-arguments none",
                  "ignoreFailures": true
               }
            ]
         }
      ]
   }

   NOTE:

   If VS Code doesn’t recognize the application name, you may have to insert the full path and file name into the launch.json file’s "program": property.

3. The key attributes in the launch.json file above are name (identifies the specific debug configuration), program (provides the path to the executable that will be debugged), args (arguments to be passed to the debugger on its command-line), environment (defines environment variables that will be exported prior to starting the debug session), and setupCommands (disables the mi-async feature; enabling it will generate GPU seg faults). The name attribute is used only as an identifier for the configuration. You can create as many debug configurations as you need.

4. In some configurations, GDB may not be compatible with VS Code. If this happens, add the environment variable to disable `gdb-oneapi` support for GPU autolaunch. This can either be done in the environment prior to launching VS Code, or within the launch.json: export INTELGT_AUTO_ATTACH_DISABLE=1

5. Bring up the debug view by selecting the Run icon in the Activity Bar. You can also use the keyboard shortcut (Ctrl+Shift+D).



6. Start the run and debug session by clicking the green DEBUG AND RUN icon, or go to Run > Start Debugging (F5).



Disconnect from a Remote Host

You can close the VS Code remote connection by selecting File > Close Remote Connection from the VS Code menu. Alternatively, click the colored remote ssh notification in the lower-left corner of the VS Code window and select Close Remote Connection from the list of Remote-SSH commands.

Kill Remote VS Code Server

If you need to kill the remote VS Code SSH server on your remote Linux target, perform the following steps:

1. Open the VS Code command palette (View > Command Palette).

2. Enter remote in the command palette dialog box.

3. Select Remote-SSH: Kill VS Code Server on Host.

You will be prompted to provide a user@host value or choose from a list of preconfigured SSH hosts in your .ssh/config file. Use the same credentials that you used to make your remote VS Code connection; VS Code will kill only the VS Code remote server instances that match that user.
