Serial Lite II Intel® FPGA IP Core

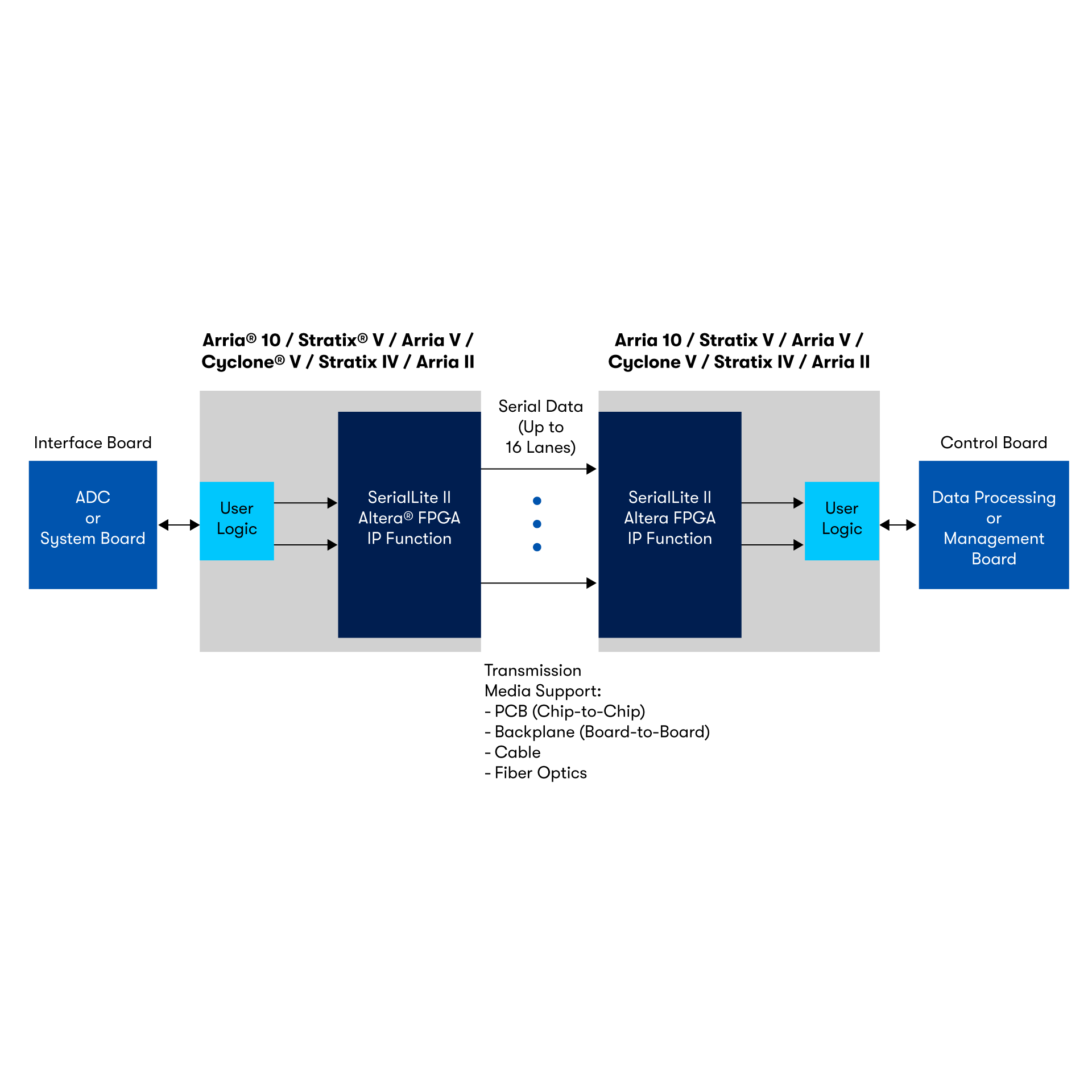

The Serial Lite II Intel® FPGA IP core provides a simple and lightweight way to move data from one point to another reliably at high speeds. It consists of a serial link of up to 16 bonded lanes with logic to provide a number of basic and optional link support functions. The Atlantic* interface is the primary access for delivering and receiving data.

Read the Serial Lite II Intel® FPGA IP core user guide ›

Serial Lite II Intel® FPGA IP Core

The Serial Lite II protocol specifies a link that is simple to build, uses as little logic as possible, and requires little work to implement. The Serial Lite II Intel® FPGA IP is feature-rich, and can be parameterized through a powerful graphical user interface (GUI).

A link built using the Serial Lite II Intel® FPGA IP core can operate from 622 Mbps to 6.375 Gbps per lane. Intel® Arria® 10 devices that are using the IP core can operate well above 6.375 Gbps per lane. The 8B/10B encoding scheme and optional cyclic redundancy check (CRC) capabilities enhances link reliability. Further reductions in the bit error rate can be achieved using the optional retry-on-error feature. Data rate and consumption mismatches can be accommodated using the optional flow-control feature to ensure that no data is lost.

Note that the Intel® Arria® 10 and Cyclone® V device families indirectly support the use of the Serial Lite II Intel® FPGA IP core in the Intel® Quartus® Prime software. If your design requires the IP core on Intel Arria® 10 or Cyclone® V devices, please contact your local sales representative for a special license and easy-to-follow implementation guidelines.

Features

  • Physical layer features
  • 622 Mbps to 6.375 Gbps per lane (< data rate support for Intel Arria® 10 devices)
  • Single or multiple lane support (up to 16 lanes)
  • 8 bit, 16 bit, or 32 bit datapath per lane
  • Symmetric, asymmetric, unidirectional/simplex, or broadcast mode
  • Optional payload and idle scrambling/de-scrambling
  • Self-synchronizing link state machine
  • Channel bonding scalable up to 16 lanes
  • Synchronous or asynchronous operation
  • Automatic clock rate compensation for asynchronous use
  • +/-100 and +/-300 parts per million (ppm)
  • Link layer features
  • Atlantic interface compliant
  • Support for two types of user packets: data packet and priority packet
  • Optional packet integrity protection support using CRC-32 or CRC-16
  • Optional retry-on-error for priority packets
  • Individual port (data/priority) flow control
  • Unrestricted data and priority packet size
  • Optional link management packets
  • Full support of asymmetrical, unidirectional, and broadcast modes at rates up to 3.125 Gbps (please refer to user guide)
  • Easy-to-use GUI interface
  • IP functional simulation models for use in Intel® FPGA-supported VHDL and Verilog HDL simulators
