Scalable Switch Intel® FPGA IP for PCI Express

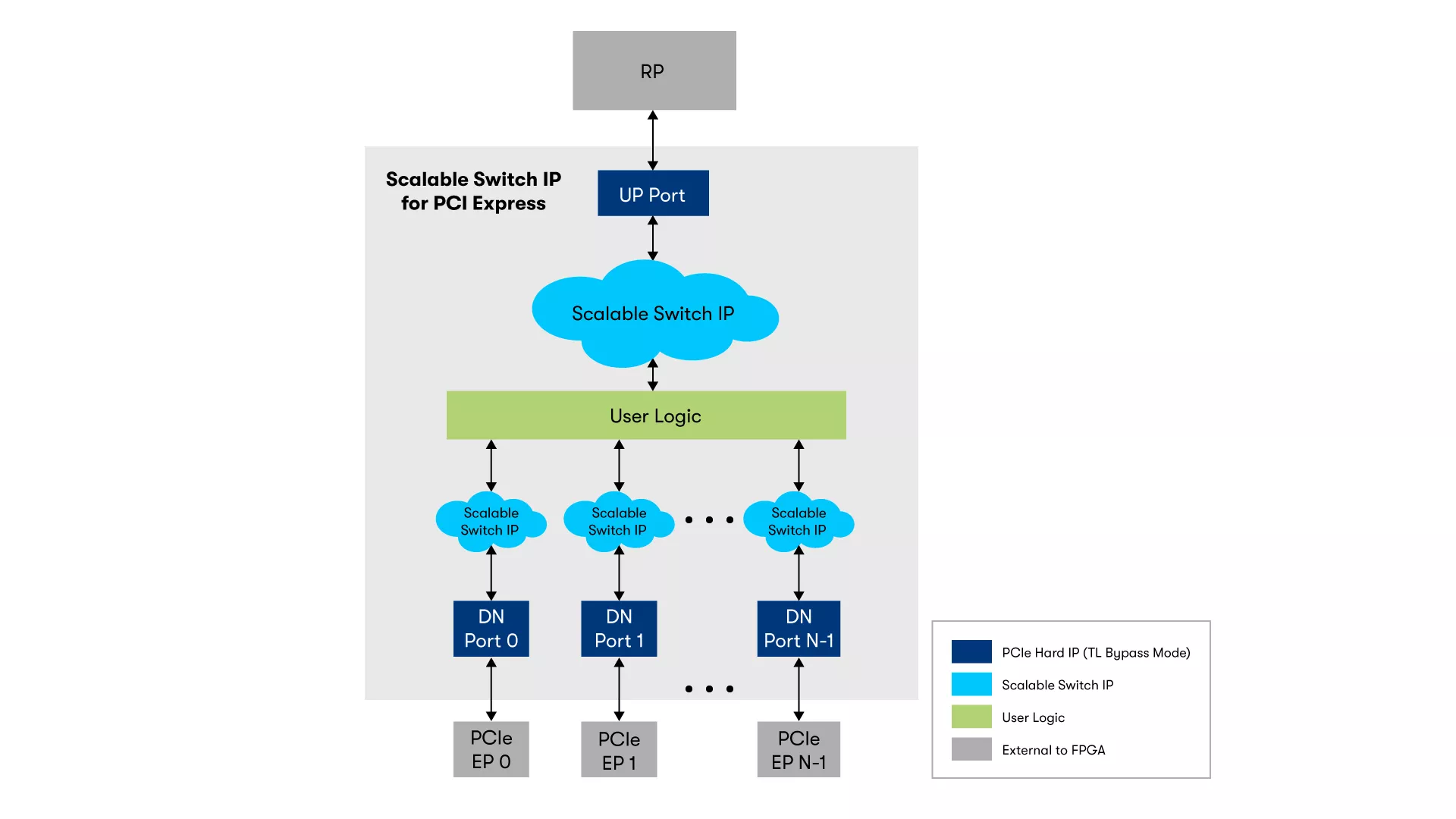

The Scalable Switch Intel® FPGA IP for PCI Express is a fully configurable switch that implements one fully configurable upstream port and connectivity for up to 64 downstream ports.

Read the Scalable Switch Intel® FPGA IP for PCI Express user guide ›

Scalable Switch Intel® FPGA IP for PCI Express

Features

Switch Upstream / Downstream Port

  • Configurations

                •    PCIe 3.0 x4/x8/x16

                •    PCIe 4.0 x4/x8/x16

                •    PCIe 5.0 x4/x8/x16

  • 1 PF for Upstream Port / 1 PF per Downstream Port
  • Single Upstream Port
  • Up to 96 Downstream Embedded Endpoints (E-EP)
  • Up to 32 Downstream Discrete Endpoints (D-EP)

Switch Downstream Port

  • Static device number allocation

                •    Supports Alternative Routing ID (ARI) forwarding for Discrete Ports

  • Message Signaled Interrupts (MSI)
  • Access Control Service (ACS) Capability

                •    Capability only (no control functionality)

  • Hot Plug support

Embedded Endpoint

  • Up to 96 embedded endpoint devices (one embedded endpoint behind each switch downstream port)
  • Up to 96 PFs maximum across all embedded endpoints
  • Up to 2048 VFs across all embedded endpoints
  • MSI/MSI-X interrupts
  • Elastic PF configuration, which is the capability to update the configuration space at any time
  • ACS Capability

                 •    Capability only (no control functionality)

  • Function Level Reset (FLR)
  • Advanced Error Reporting (AER)
  • Single Root I/O Virtualization (SR-IOV)
  • Alternative Routing ID (ARI)
  • VirtIO Capability

       •    Capability only

       •    No VirtIO PCI Configuration Access functionality

  • Address Translation Service (ATS)
  • TLP Processing Hints (TPH)

IP

  • Support for Agilex™ 7 FPGAs and SoCs and P-Tile based devices: Stratix® 10 DX FPGAs and SoCs
  • Optimized gate count
  • User packet interface with separate header, data and prefix
  • User packet interface provides one TLP in any given cycle for all configurations
  • Up to 512 outstanding Non-Posted requests (x16 core only)
  • Up to 256 outstanding Non-Posted requests (x8 and x4 cores)
  • Device-dependent PLD clock (coreclkout_hip) maximum frequency

                    •    500 MHz for Agilex™ 7 devices, 400 MHz for Stratix® 10 DX devices

IP Status

IP Included in Quartus Prime Design Software Ordering Code
Scalable Switch Intel® FPGA IP for PCI Express No IP-PCIESCSWTCH
