2.4. Simulating the Design Example Testbench

The design example testbench simulates your generated design.
Figure 4. Procedure

To simulate the design, perform the following steps:

  1. Change the working directory to <example_design_directory> /simulation/<Simulator>.
  2. In the command line, run the simulation script. The table below shows the commands to run the supported simulators.
    Simulator Command
    QuestaSim* / ModelSim* vsim -do modelsim_sim.tcl
    vsim -c -do modelsim_sim.tcl (without QuestaSim* / ModelSim* GUI)
    VCS* MX sh vcsmx_sim.sh
    The simulation ends with messages that indicate whether the run was successful or not.

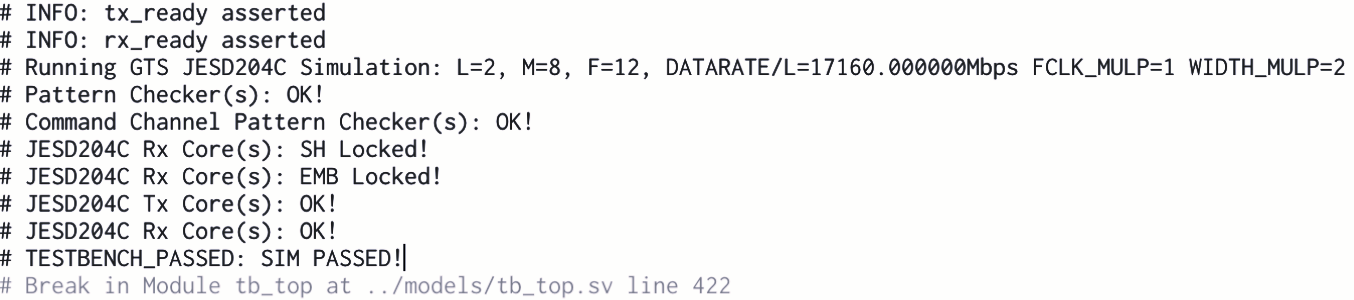

    Figure 5. Successful SimulationThis figure shows the successful simulation message for the ModelSim* simulator.
